Rendering

Section View

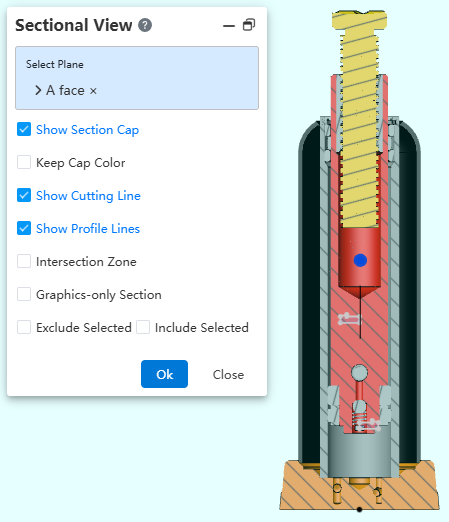

Optimization of Render Effects for Sectional Views.When 【Display Cutaway Cap】 is checked and 【Preserve Cover Color】 is unchecked, the cutaway surfaces exhibit the actual colors of the components.

Description：

• Part Visualization Priority:Entity Appearance > Part Visualization > Face Display;When only Face Display is applied, the cutaway faces reflect the entity's default color.

• Assembly Visualization Hierarchy:Component Appearance Settings > Document-level Settings;Corresponds to "Application to Components" > "Application to Documentation".
