Make Flexible

A new 'Make Flexible' feature has been introduced, enabling the independent movement of components within a sub-assembly.

How to use：

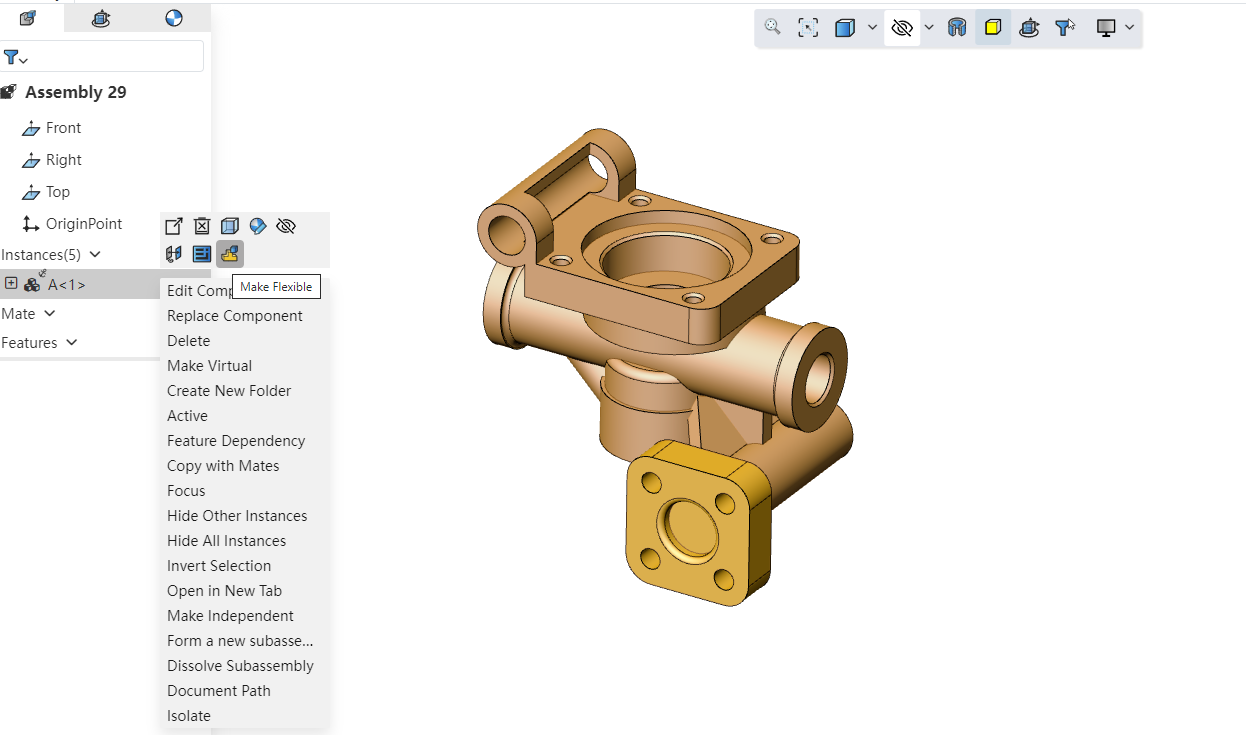

1）Right-click on the sub-assembly containing the components you wish to move.

2）Select 'Make Sub-Assembly Flexible' from the context menu.

3）Drag and manipulate components within the flexible sub-assembly; they can now move independently.

Notes:

• Component movements maintain existing mate relationships.

• Adjustments to component positions within the flexible sub-assembly do not impact their original positions in the source document.

• To restore rigidity, right-click on the sub-assembly again and revert it. All components will return to their saved positions as defined in the original sub-assembly source.
