Move With Triple

---

  Support moving parts by dragging and dropping the triple shaft.

How to use：

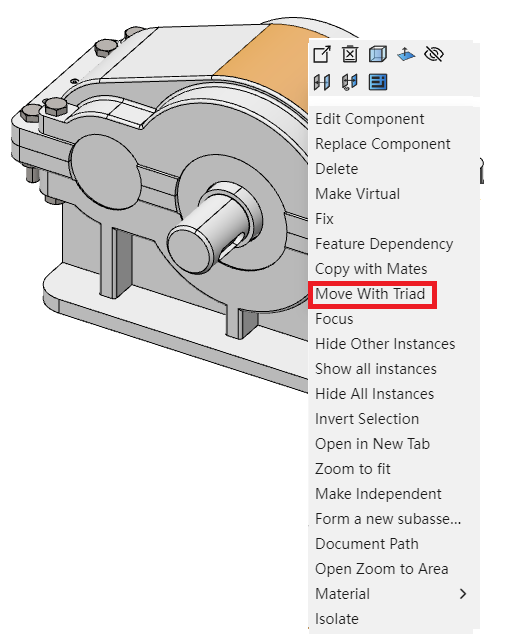

1）Right click on the part you want to move in the viewport.

2）Select "Move with Triple Axis" and the triple axis is displayed on the part.

3）Drag and drag the triple axis to move the part.

4）Click the blank area of the viewport to end the movement.

Note：The fixed parts right-click menu does not have the "Move with triple axis" option.

Rapid Triple Axis Display：

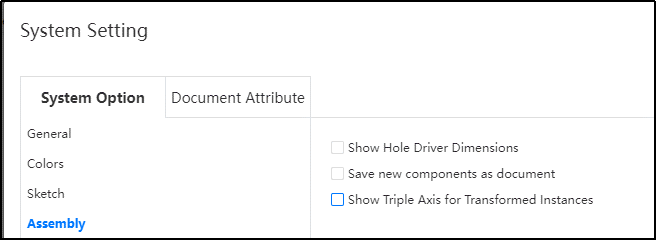

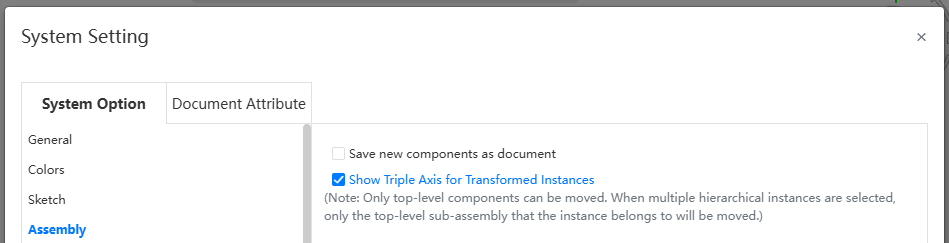

1）Open 'System Settings - System Options - Assembly'.

2）Select 'Display triple axis for transformable instances'.

3）Open the assembly document.

4）In the features panel, select the component instance you want to move.

5）The triple axis will appear on the instance. Use it to move or rotate the component by dragging the axes.
