# Settings
# Document Properties
# Leader Style
In the drawing system settings - document properties, a new leader type has been added, which supports defining distinct leader styles for different edge types, including specifications such as edge type and line thickness.
Description：
Hatch/Fill only allow the setting of line width and do not support defining leader styles.
In drawings, sketch line thickness are not preserved in color schemes.

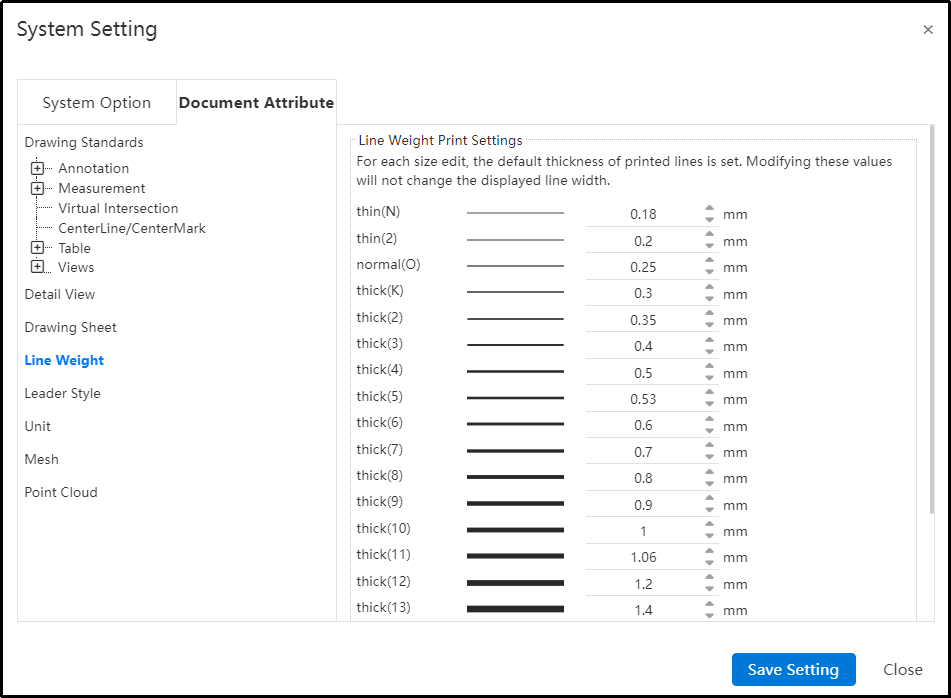

# Line Weight
In the drawing system settings - document properties,a new line thickness option has been added, allowing users to manage and adjust line thickness effectively.
Description：
Only drawings allow access to these setting configurations; in part and assembly environments, the line thickness configuration page is unavailable, restricting users to default settings without the ability for customization.
Upon exporting or printing with adjusted line thicknesses, some software and hardware may not support custom-defined widths, automatically adjusting them to the nearest available standard width instead.

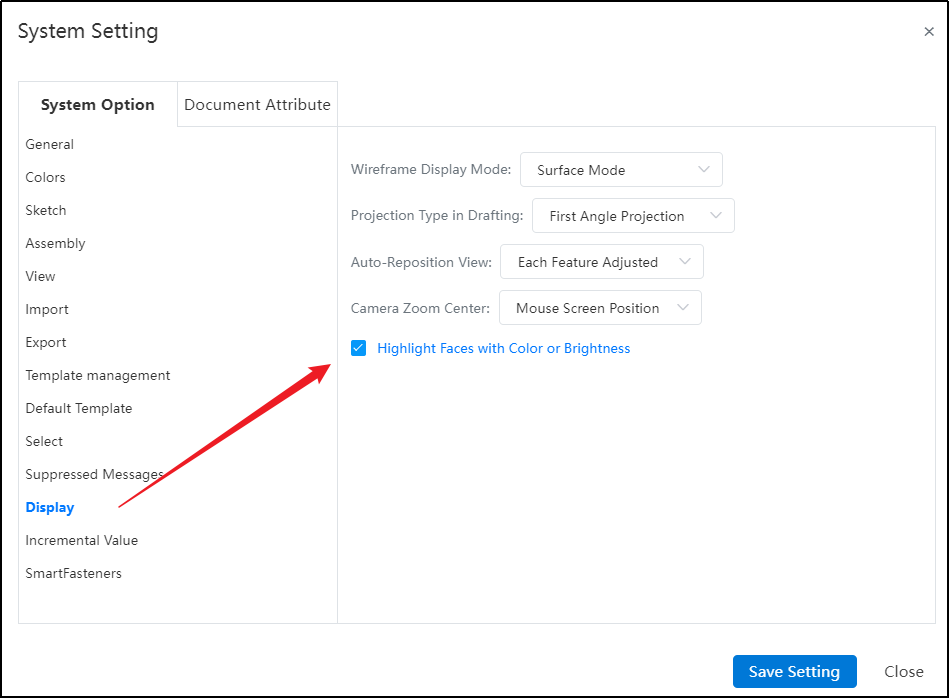

# Display Modes
In the system settings, additional display modes-related configurations have been introduced, allowing users to navigate between these settings and color preferences seamlessly.
Control Parts Description：
Shaded: Manages the default visual appearance of parts, maintaining bidirectional synchronization with the "Appearance Settings" under the "Parts" category.
Geometry-Entities/Surfaces/Meshes:Controls the visual presentation of corresponding geometry elements (solids, surfaces, or meshes). This option is only available within part-level documentation.
Reset Colors to Defaults: Clicking this button restores all color settings to their original default values.
View System Colors: Click "View System Colors" to navigate to the system-wide color configuration interface located under "System Settings > System Options > Colors."

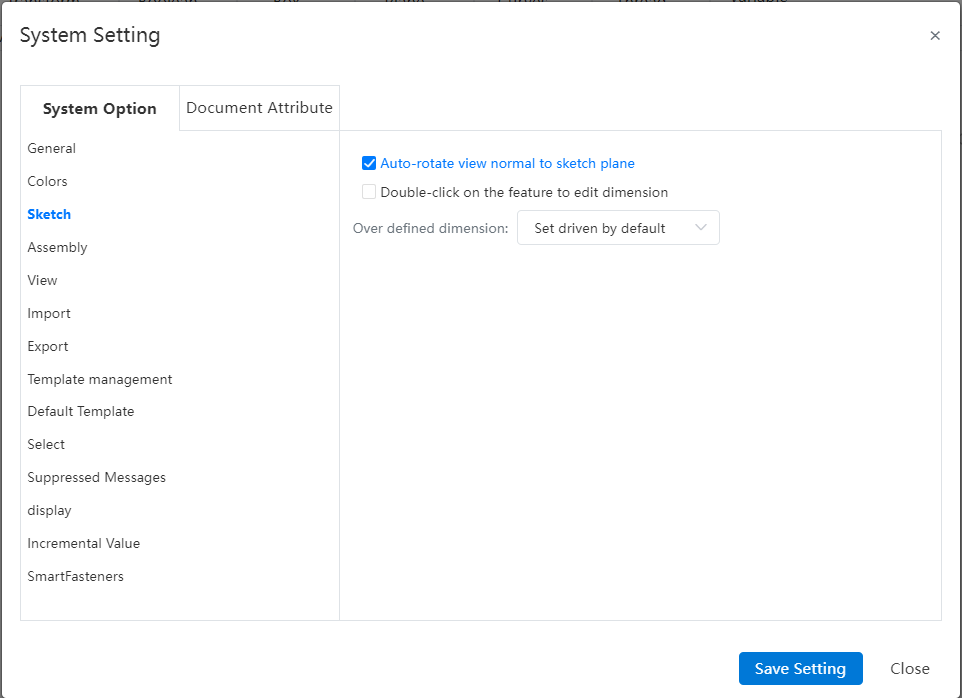

# Sketch
In the System Settings-System Options-Sketch section, a new feature has been added:"Automatically Rotate View Perpendicular to Sketch Plane During Creation and Editing."
Description：
- Enabling this feature ensures the viewing angle automatically aligns perpendicular to the sketch reference plane during both sketch creation and editing processes.
# Show

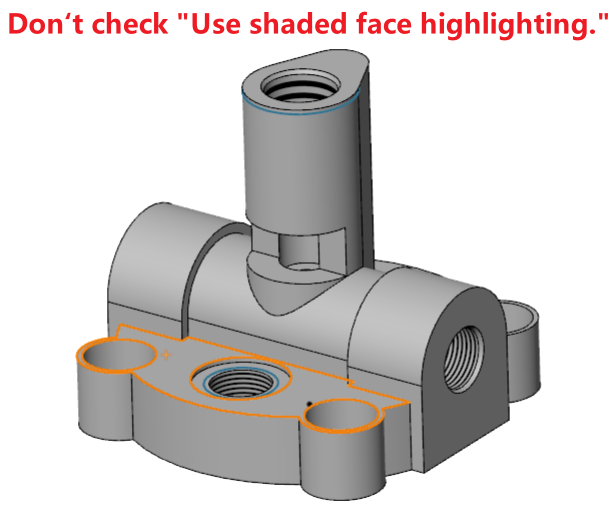

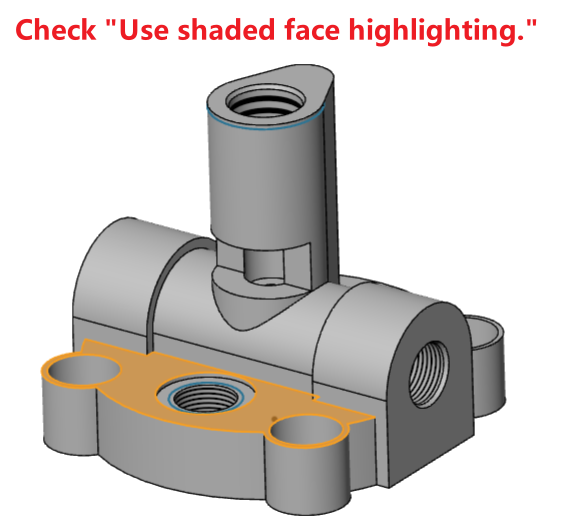

In Show Settings, introduce a checkbox named 'Use Shaded Face Highlighting' to control whether the entire selected face is highlighted.
# Select
Improve the user experience for the “Launch Through Transparent Face Selection”option by enabling the Shift key to temporarily toggle its functionality during element selection.
Description：
Without holding Shift while selecting elements, it has the same effect as the current selection state.
If currently selected, holding Shift while picking an element deselects this option.
If currently deselected, holding Shift while picking an element selects this option.

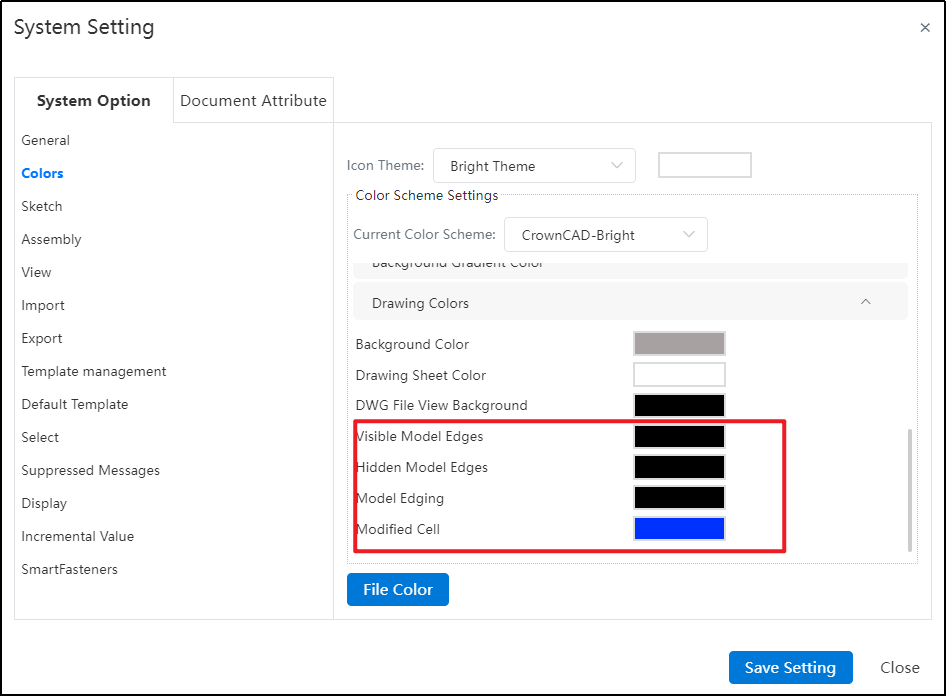

# Color
System Settings - Colors - Drawing Colors now includes additional color type options that can be set.
Description：
The drawing colors set in System Settings can be applied through the color - "Default" option in the "Line Type" command.
Color settings related to "Drawings" only take effect within Drawing documents.
