Chamfer Dimension

---

Mark upscale dimensions on a 3D model. The dimensions marked by the command are placed in View Panel - Dimensions

Main functions and mode of operation：

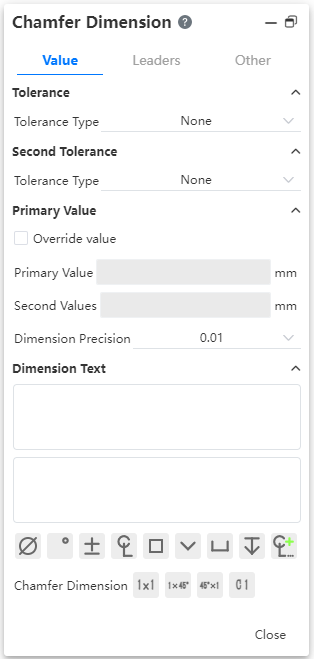

1. Click "Reverse angle size" to pop up the dialog box.

2. Marking elements: Select two items, support the choice of "line"; After selecting the element, move the mouse to select the label placement

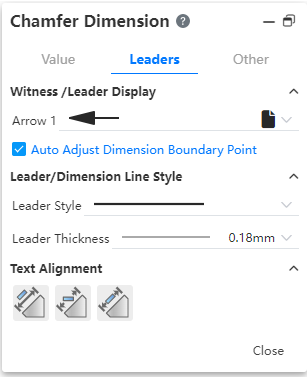

3. The remaining parameters are set along with the project diagram - reverse angular dimensions.

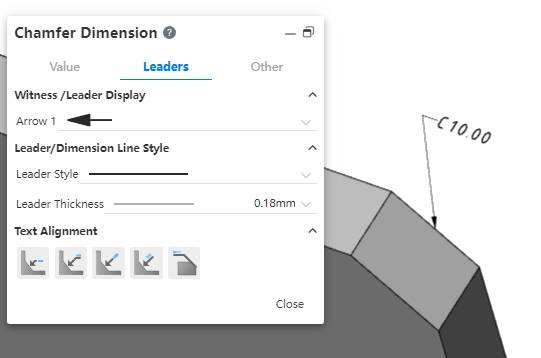

4. Click on the drawing of the completion of the three-dimensional annotation, three-dimensional annotation was selected highlight, pop-up dialog box, you can enter Lines should be re-edited; Drag the mouse to change the position in the plane where the annotation is located.

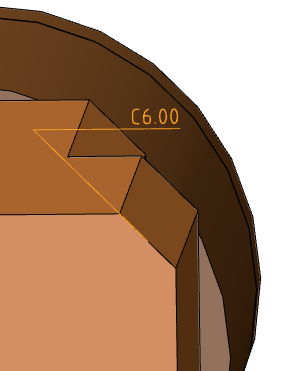

Example: The following view is an activated view with a reverse angular dimension. The effect is as follows.
