# BaseLine Dimension
Mark baseline dimensions on a 3D model. The dimensions marked by the command are placed in "View Panel - Size In.
Main functions and mode of operation:：

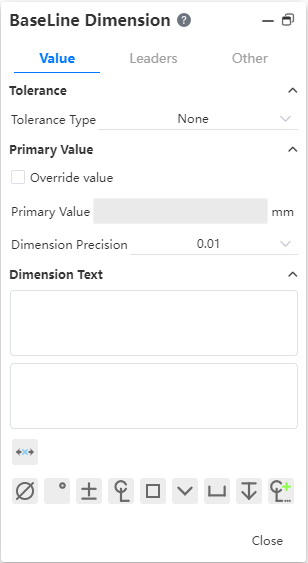

- Click on the "base size,"
,the dialog box pops up.
- Marking elements: You need to select at least one, and you can select points, lines, and surfaces; After selecting the element, move the mouse to select where to place the annotations. Click OK to generate annotations.
- Select the item with the annotation result
| Options | Annotate results |
|---|---|
| Point + Point | Distance |
| Point + Line | Minimum distance |
| Point + Plane | Minimum distance |
| Line + Line (Parallel) | Distance |
| Line + Line (Not-Parallel) | Angle |
| Line + Plane (Parallel) | Distance |
| Line + Plane (Not-Parallel) | Angle |
| Plane + Plane (Parallel) | Distance |
| Plane + Plane (Not-Parallel) | Angle |
- The remaining parameters are set along with the project diagram - benchmark dimensions.

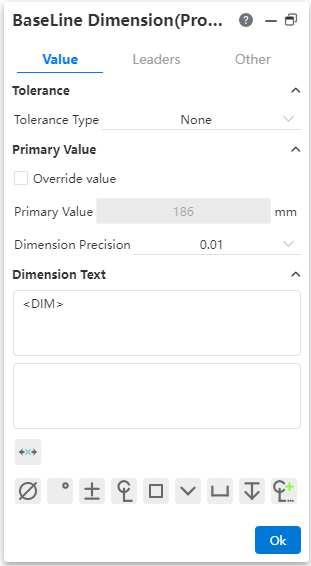

- Click on the drawing of the completion of the three-dimensional annotation, three-dimensional annotation was selected highlight, pop-up dialog box, you can enter Lines should be re-edited; Drag the mouse to change the position in the plane where the annotation is located.

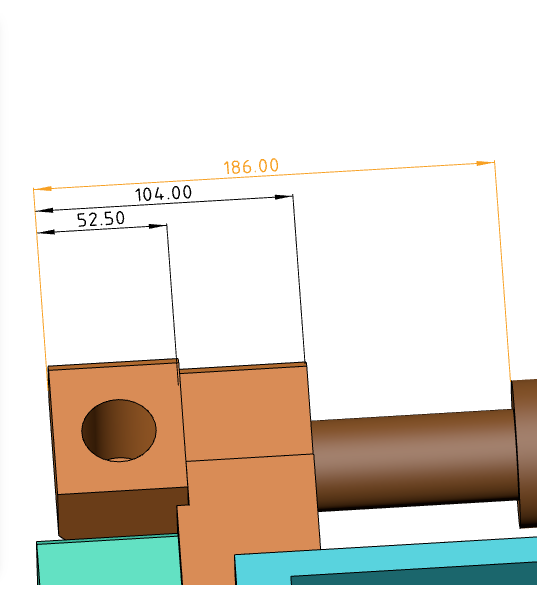

Example: The following view is an activated view with a baseline size. The effect is as follows.
