Table of bending coefficient

---

The Bending coefficient table command is used to generate a sheet metal bending coefficient table.

Method of generating：

1） Click the Table of Bending Factors command.

2） Set the parameters of the bending coefficient table in the dialog box.

3） Click the Radius Flat Type view in the viewport and preview appears at the mouse.

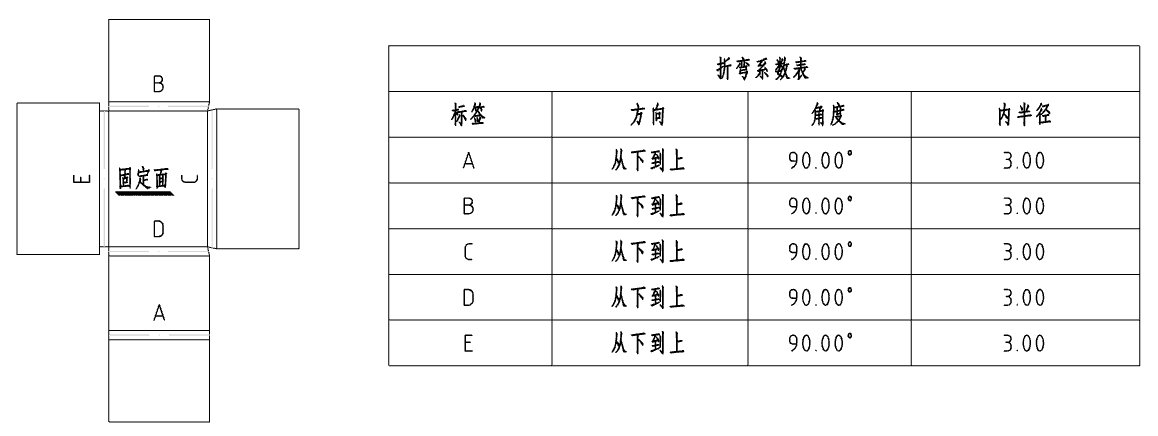

4） Click the left mouse button, and the bending coefficient table will be generated at the mouse.

Instructions：

• A table of bend coefficients can only be created from a flat panel type view, each view can generate at most one bend coefficient table at the same time.

• You can set the type of bend label to be letter or number, and the start number of the label.

• Constant corners can be set, and the selected boundary is fixed when adding or deleting columns to the table.

• Double-click the column header to modify the column properties.
