Endpoint Treatment

The new "Endpoint Treatment" command is designed to generate annotations marking the cross-sections of welds.

How to use：

1）Click the "Endpoint Handling" command.

2）Select two intersecting edges.

3）Click in the viewport to generate the endpoint handling annotation.

Note: If the selected edges have multiple intersection areas, clicking in a specific area will generate the annotation within that region.

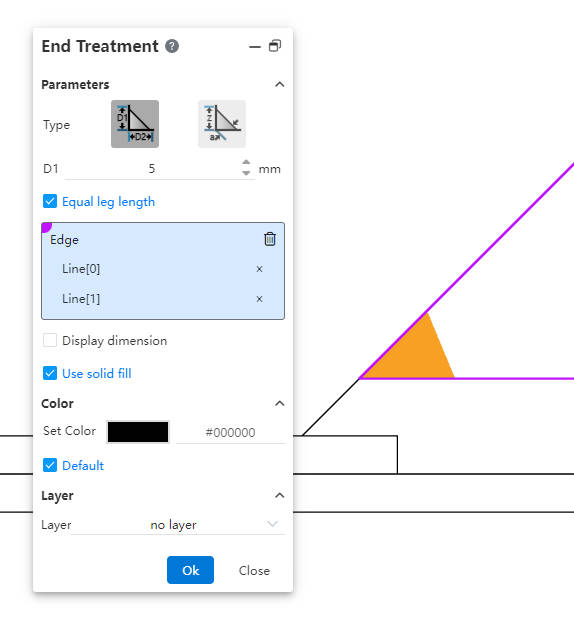

Dialog Box Control Descriptions:

• Type :Select the type of endpoint symbol.

• Size Dimensions :Set the dimensions of the endpoint symbol based on the selected type:Example: Define size through parameters D1, D2, Z, and a.

• Equal Pillar Lengths:Enable this option to set D1 = D2.

• Edges Selection :Choose the edges on both sides of the endpoint handling annotation.

• Show Dimensions :Enable this option to display the size dimensions of the endpoint symbol.

• Solid Fill :Enable this option to fill the interior of the endpoint symbol with color.

• Color and Layer :Control the color and layer settings for the endpoint handling annotation.
