Dowel Pin Symbol

The "Dowel Pin Symbol" feature is introduced to add pin symbol annotations to circular holes.

How to use：

1）Click the "Pin Symbol" icon on the toolbar to open the command dialog box.

2）Set the color and layer as needed.

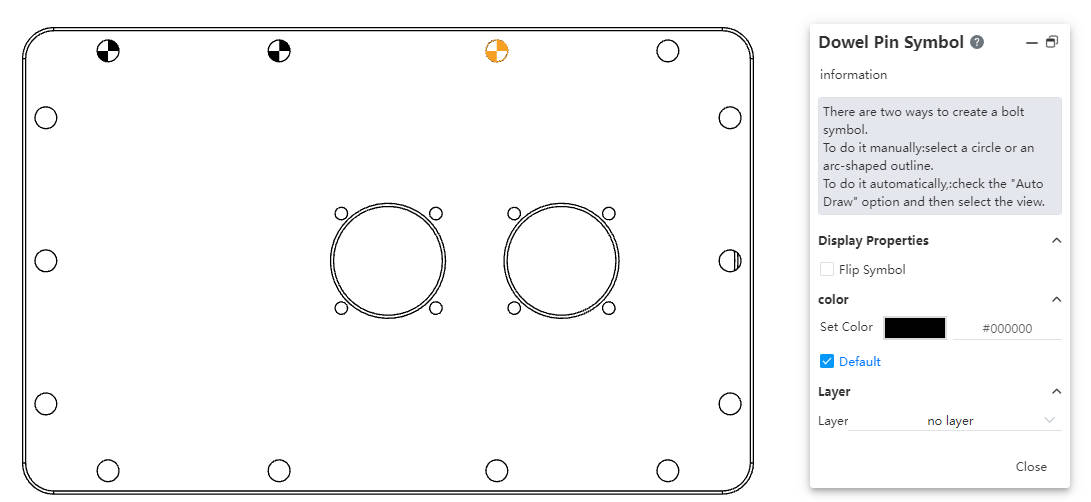

3）Manual Insertion:Select a front-view circle, or arc projection line/section sketch line.

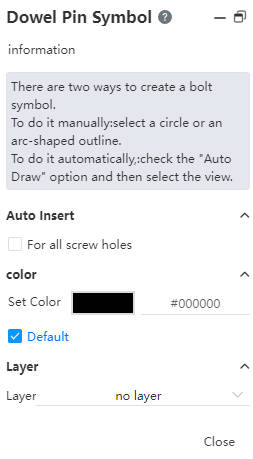

Automatic Insertion:Enable the "For All Pin Holes" option, then select the view where you want to create the pin symbols.

Notes:

• Manual addition allows picking the same edge multiple times to add pin symbols.Automatic addition cannot be used for edges that already have a pin symbol.

• Once manual insertion has started, switching to automatic mode during the same session is not possible. To use automatic insertion, restart the command.

• Preview Pick:Start the "Pin Symbol" command by selecting a preview circle or arc first, then directly enter the manual insertion workflow.

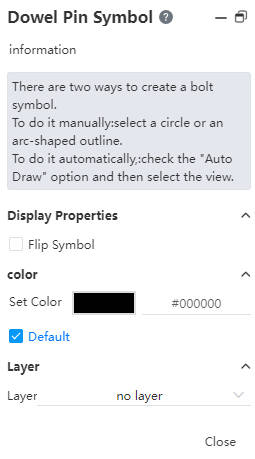

Dialog Box Control Descriptions:

• For All Pin Holes :Enable to enter automatic insertion mode.

• Reverse Symbol :Toggle the fill color area in the symbol (displayed when the pin symbol is selected).

• Set Color :Select the color for the created pin symbols.

• Default :Enable to create pin symbols with a default color.

• Layer :Set the layer for creating pin symbols.
