Note

---

Generate Note

Generating steps:

1. Click the comment command to bring up the comment dialog box.
2. Set the comment style in the dialog box, the dialog box control description:

• Angle: Set the overall rotation Angle of the comment.
• Font: Set the font of the annotation.
• Lead: Sets the marked lead. Note that the no-lead style can be selected here.
• Frame: Sets the frame style of the comment.
• Color: Sets the color of the annotation.
• Layer: Set the layer to which the annotation belongs.

3. Click in the viewport to locate the comment.

• There are lead styles that need to be clicked twice, the first time to determine where the arrow is pointing and the second time to determine where the comment text will be placed. The leadless style requires only one click to determine where the commented text will be placed.
• The polyfold style requires multiple clicks to draw a polyfold lead, and finally double click to end the lead.

4. Type the text into the input field that pops up.
5. Click on the blank space to finish creating the comment.

Note: Comments placed within the view area move with the view.

Note Editing

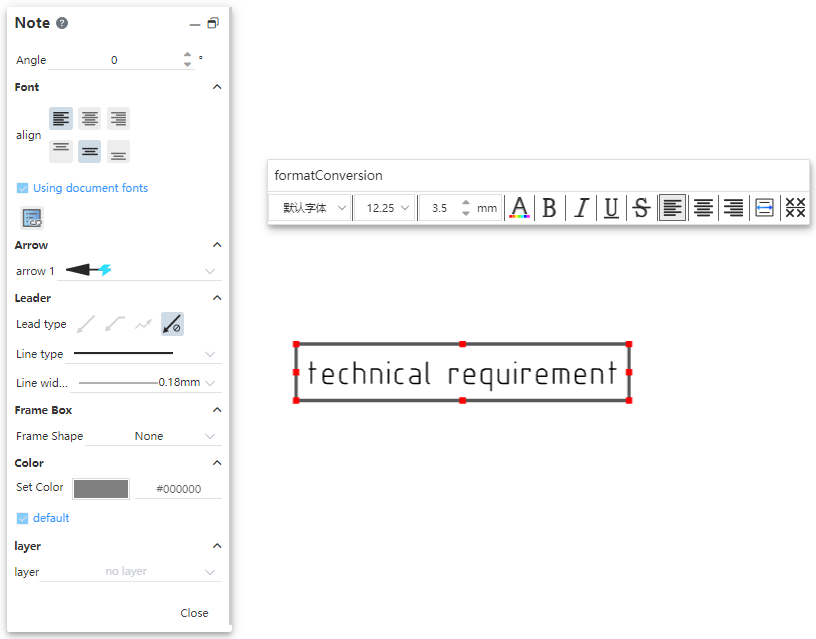

Display borders and controls when editing comments, support setting alignment direction, easy to control the position of comment text.

How to use:

1. Double-click to edit comments.

2. Use the "Align" option in the comment dialog box to set the alignment of the text relative to the border.

3. Drag and drop the red TAB of the border around the text in the viewport to adjust the border position.

4. Click OK to finish the adjustment.
