Assembly Navigation

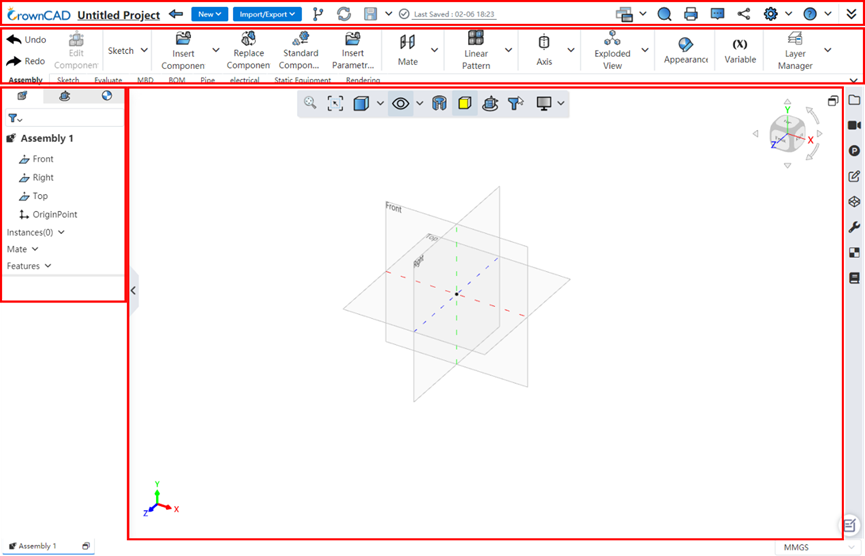

An assembly document is a design environment for defining parts and sub-assemblies under assembly, as well as defining a variety of fit relationships. It usually consists of navigation bar, function toolbar, instance list, fit list, feature list, viewport area, view function, animation, as shown in the following figure:

New

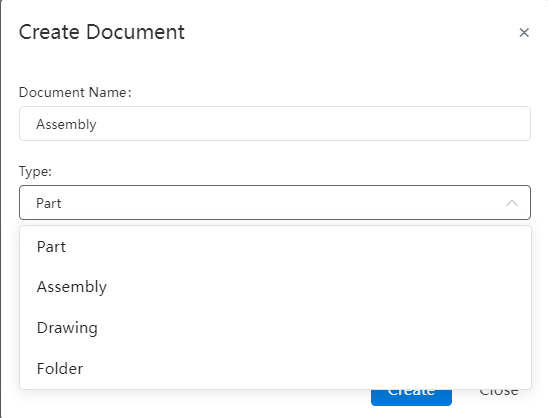

You can click "New Document" in the navigation bar or in the document list to pop up the Create document interface, enter the document name (the default name is: Assembly when not entered), select the type as "Assembly", and click Create, as shown in the following picture:

Navigation Bar

Composition and function refer to the parts document related content.

Function Toolbar

Contains undo rollback function, edit parts, insert parts or assembly, copy with fit, standard parts, fit, mirror, array, stretch cut, and variable functions, as shown below:

Undo Rollback: Undo rollback function in the same part document

Instance List

The instance list is used to display all instances in the current assembly document, as shown in the following figure:

Mate List

The mate list is used to display all mate relationships in the current assembly document, as shown in the following figure:

Feature List

The feature list includes standard planes and all features in the current assembly document, including pattern features, extruded cut features etc., as shown in the following figure:
