Grouping Instances

---

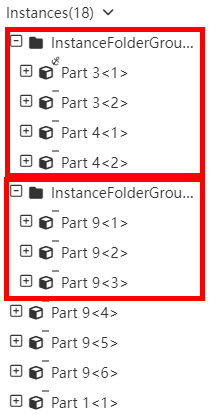

In the assembly document, parts, fits, features and other contents can be grouped into folders to achieve group management.

Usage method：

1）Right-click the part, fit or assembly feature to be placed in the same group in the viewport or feature list, and click "New Folder".

2）Set the folder name.

3）Click your mouse in the blank space or press Enter to finish creating the folder.

Note 1：Different content elements cannot be placed in the same folder. If only parts can be selected, do not mix the selection of parts and matches or features.

Note 2：For sequential parent-child features, the sequence must remain the same when placing in the folder, otherwise it will not be placed in the folder.
