Automatic Border

  Support for automatic generation of drawing boxes and area labels in drawing formats.

1. Startup method： In the "Edit drawing format" state, you can choose to start the "automatic border".
2. Settings：Provide two types of Settings: delete elements and boundary parameters.

1. Delete elements: Batch delete unnecessary lines or comments and other elements in the current drawing format;

2. Boundary parameters: Provide the function of custom boundary parameters, which can be set and selected on demand to achieve the setting of the area size and margin of the picture frame.

How to use：

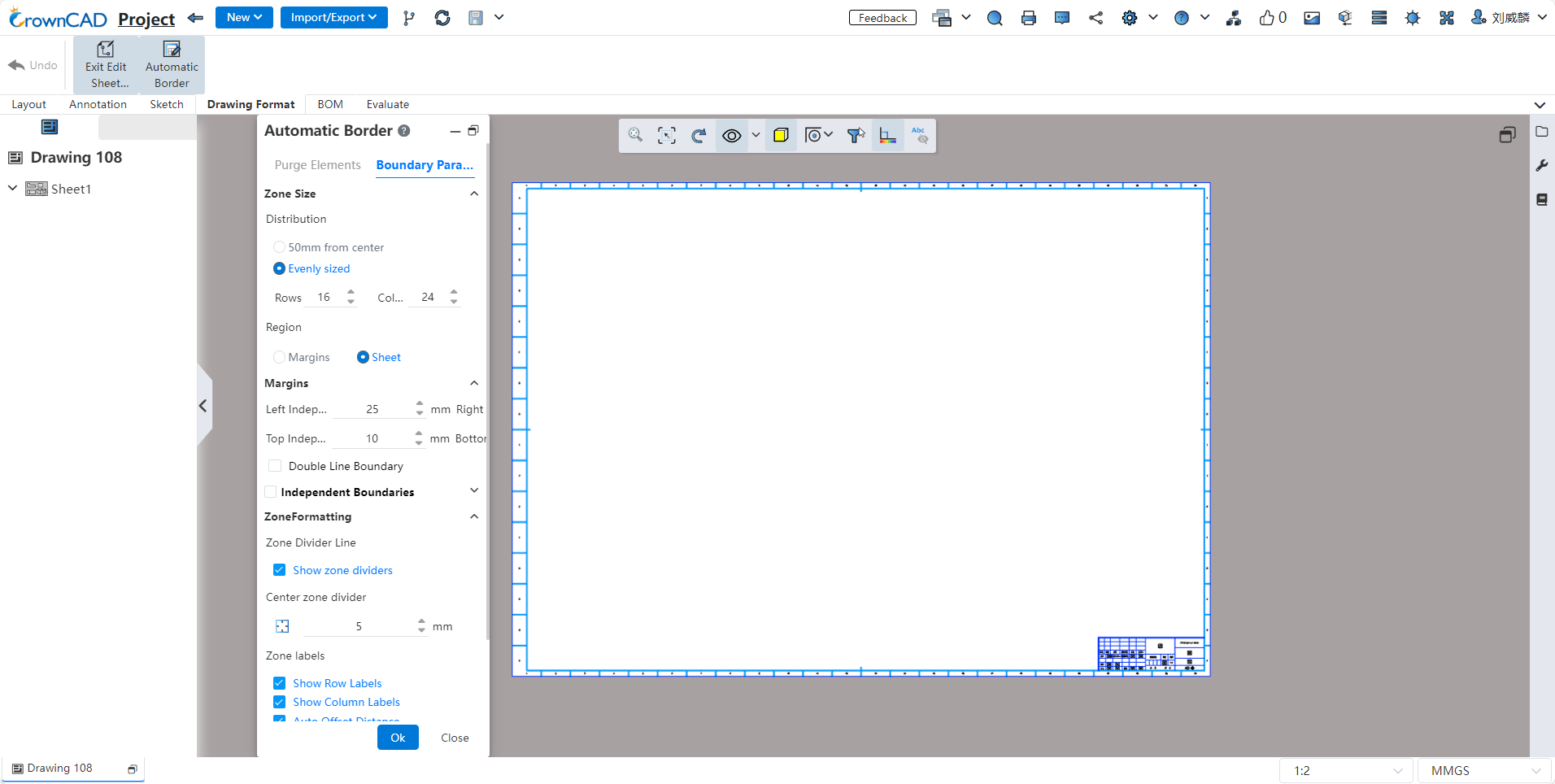

1. Enter the Edit Drawing format state and click the "Automatic Boundary" command.

2. Switch to the "Boundary Parameters" Tab.

3. Set the parameters as desired.

4. Click OK to finish creating the boundary.

Parameter description：

1. Area Size: Set the rules for dividing the area and the total dividing area.

2. Margin: When the total division area is set to "Border", control the distance of the border to the right and left above and below the drawing.

3. Double-line border: A circle of border lines is generated on the outside of the bounding box to form a double-line border.

4. Independent border: The margin of the boundary line is the same as the margin of the zone division by default, and you can set a separate margin for the boundary line by checking the independent border.

5. Zone divider line: Set whether to display zone divider line and the length of zone divider line.

6. Zone labels: Sets the explicit and hidden status and position of row and column labels.

7. Font: Sets the font for the region label.
