Fillet

---

Select the intersection of two sketch lines or two lines to create rounded corners.

Drawing Steps

1. Click to launch the Fillet command.

2. Parameter：Enter the radius value of the fillet, the default is R10.

3. Options：Keep corner constraints, Dimension fillet dimensions. The default is checked.

（Keep corner constraints：If vertices have dimensions or constraints, the virtual intersection is preserved.

Dimension Fillets： Add dimensions to each fillet.）

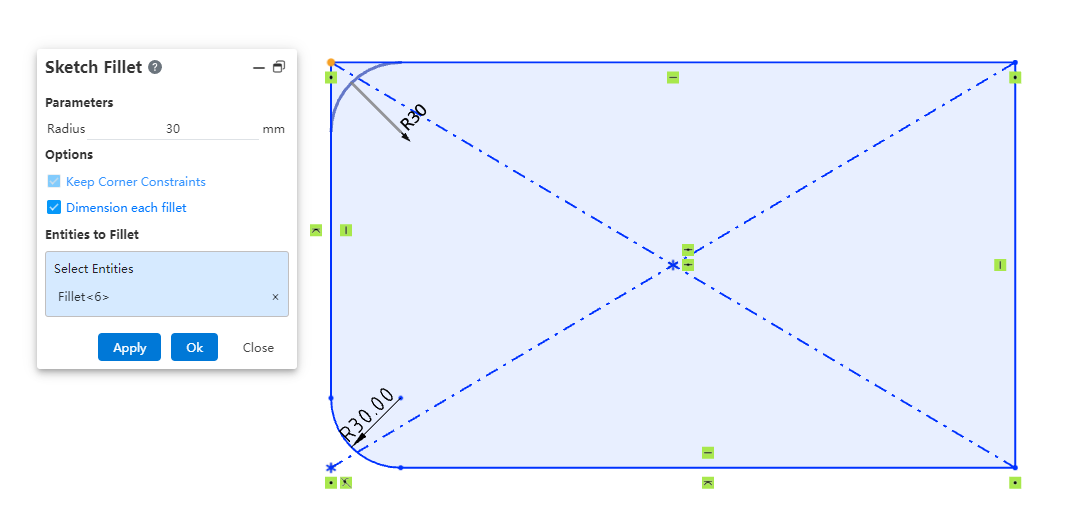

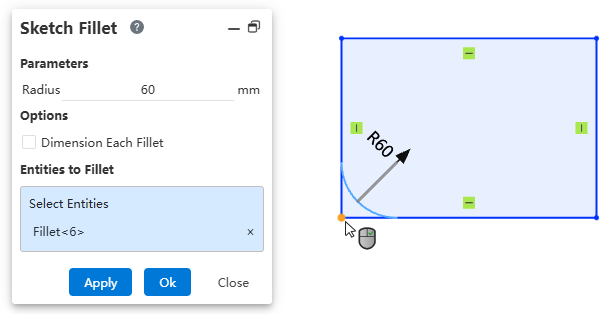

4. Fillet Element：Select the intersection of two sketch lines to be filled or to be filleted. The selected element is highlighted and displays the appropriate name in the list.

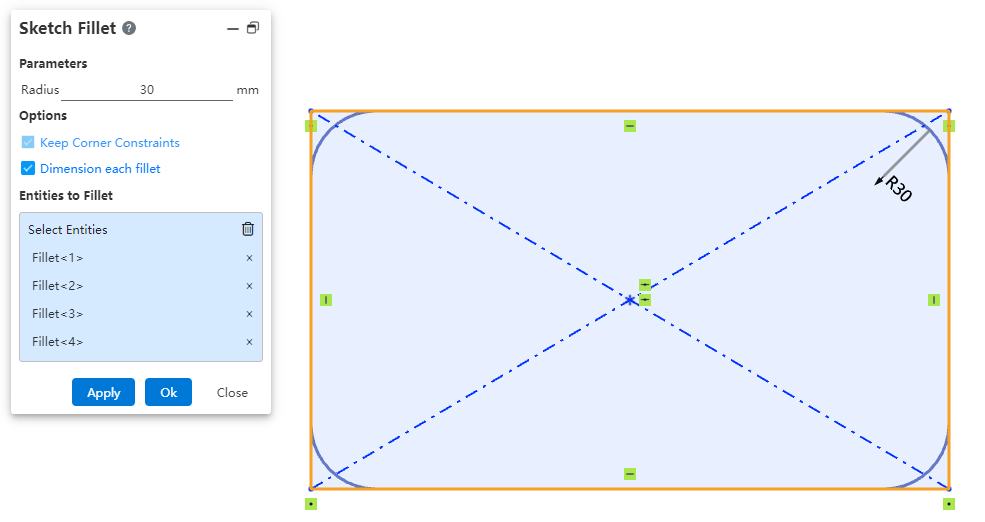

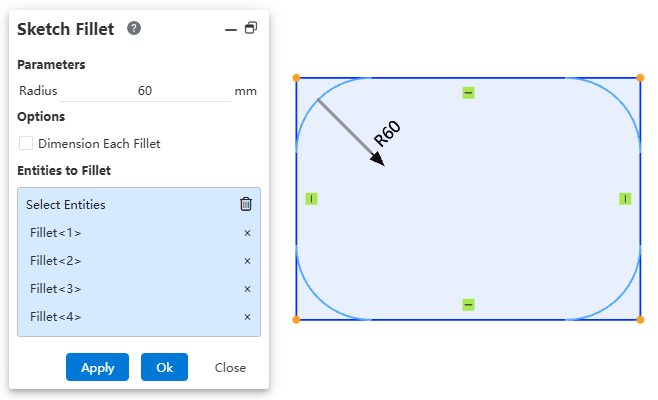

5. Preview effect：The intersection of the picked fillet or fillet line is highlighted, the resulting fillet line can be previewed, and if necessary, you can drag the dimension line to change the corner radius.

6. Special cases：

1）If the line size is less than the fillet default of 10, the original line is deleted, and a line is generated in reverse and a fillet is generated, as follows.

2）If the selected point connects more than two lines, rounded corners are generated in the order of the lines.

7. When the element picking is completed, which can support the creation of the command, the right mouse button displays the confirmation identifier, as follows:

• You can confirm the creation by clicking the right button, which is equivalent to creating or confirming the button, which can create and generate rounded corners; Click the close or ECS key to exit the chamfer.

8. End the command by the ESC key, or by right-clicking [Exit fillet] in the menu, or by "Cancel" in the command bar.
