# Chamfer
Between two non-parallel sketch lines, create a right angle by defining parameters.
# Drawing Steps
- Click
to launch the Chamfer command.
Chamfer type： Distance-Distance Chamfer, Angle-Distance Chamfer.
Option：Equal distance. Different chamfer values can be set when unchecked.
Parameters：distance, angle, etc., depending on the type of chamfer.
Chamfer element：Select the two sketch lines or intersection points to be chamfered, and support box selection of intersection points.
# Distance-Distance Chamfer
Creates a chamfer by defining the distance of the chamfer.

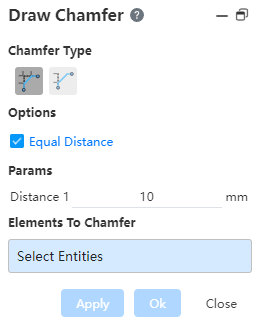

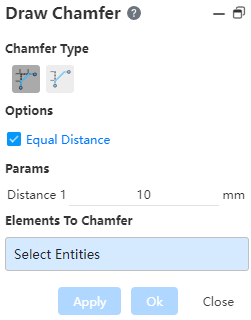

- Select distance/distance chamfer .

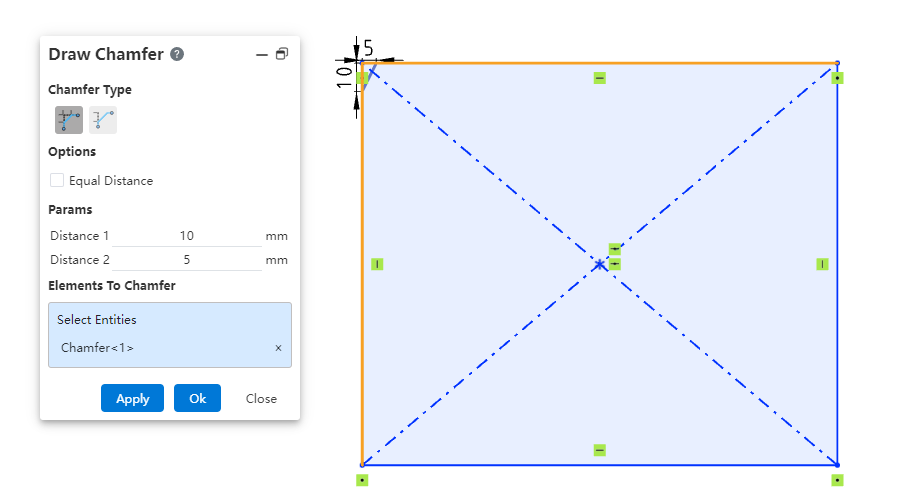

- Optional：Tick Equal Distance, then enter a distance in the parameter. If unchecked, enter distance 1 and distance 2 in the parameters.
Parameter：The default chamfer distance is 10. Distance ≤ the size of the line to be chamfered.

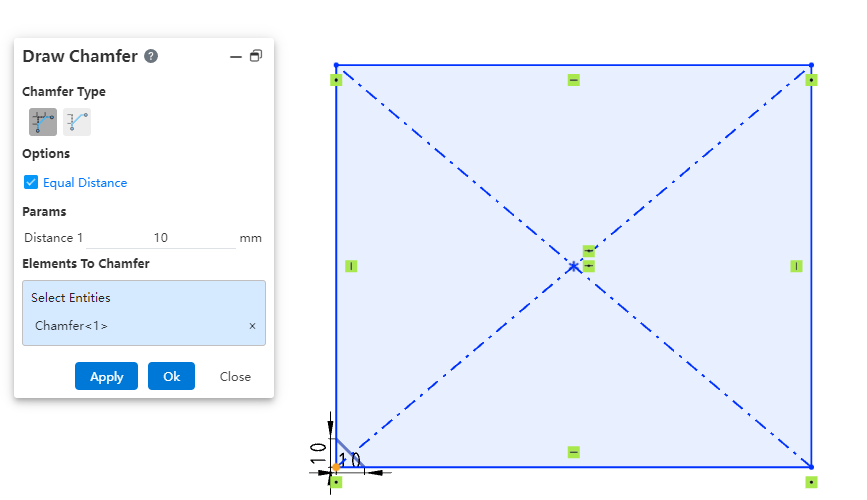

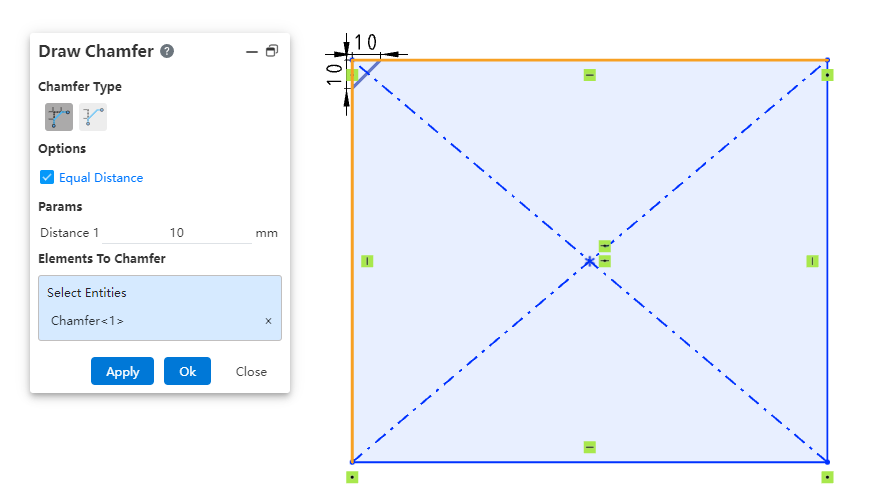

Preview effect：The chamfered lines picked up in the viewport are highlighted, resulting in a preview line for the chamfer, and the two picked chamfered sketch lines are displayed in the list.
- Special case：If the chamfer value is equal to the chamfer value, the chamfer effect creates a reference line for the original chamfer.
- When the element pickup is completed, which can support the creation of the command, the right mouse button displays the confirmation identifier, as follows:
- You can confirm the creation by clicking the right button, equivalent to creating or confirming the button, you can create the generated chamfer, click cancel to exit the chamfer.
# Angle-Distance Chamfer
Between two lines that are not parallel, right angles are created by defining distances and angles.

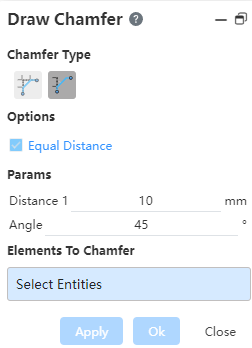

- Select the distance/angle chamfer.
.
Parameters：Distance, Angle. The default distance is 10 and the angle is 45°.

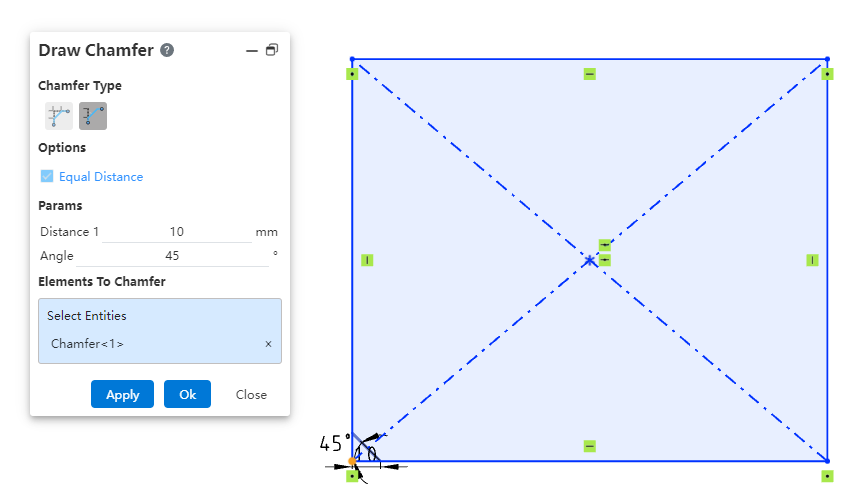

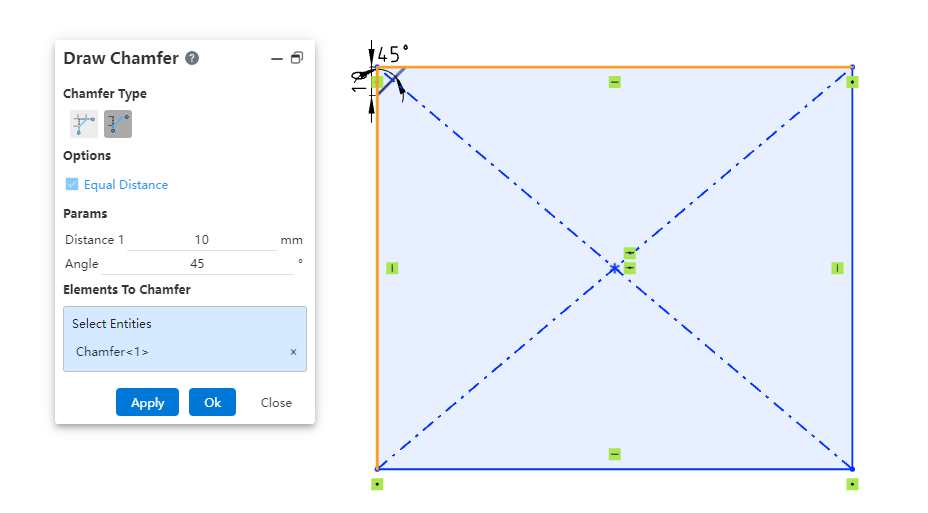

Preview effect：The chamfered lines picked up in the viewport are highlighted, resulting in a preview line for the chamfer, and the two picked chamfered sketch lines are displayed in the list.
- Special case：If the chamfer value is equal to the chamfer value, the chamfer effect creates a reference line for the original chamfer.
- When elements are picked up to support the creation of the command, the right mouse button displays the confirmation identifier, as follows:
- You can confirm the creation by clicking the right button, equivalent to creating or confirming the button, you can create the generated chamfer, click cancel to exit the chamfer.
