Trim

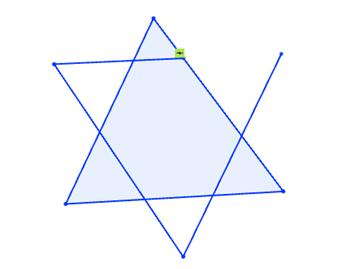

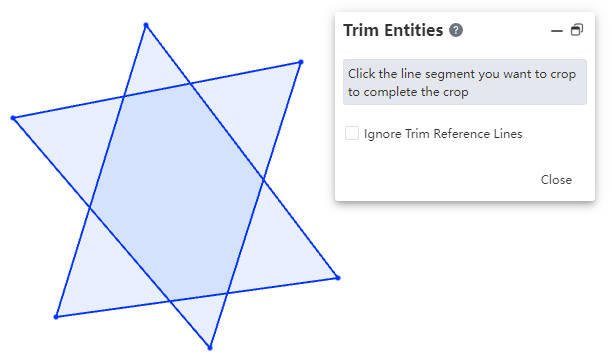

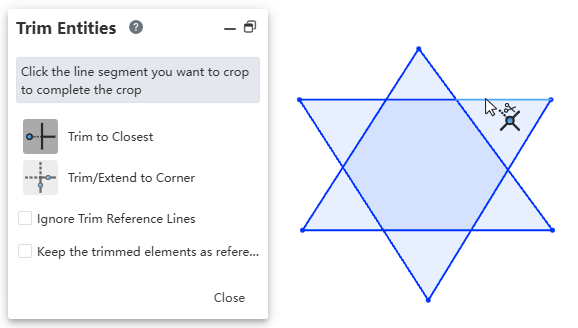

Select the segment to be trimmed, and trim the curve up to the first intersection or bounded element. If no intersection or bounded geometry is found, the entire curve will be deleted.

• Ignore trimming on reference lines: When this option is checked, the trimming process will not affect reference lines.
