Chamfer

---

Between two unparallel sketch lines, create right angles by defining parameters.

Drawing Steps

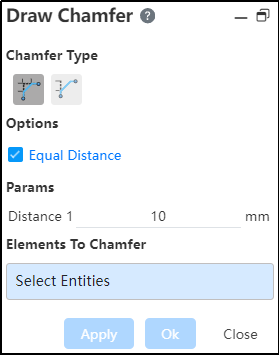

1.Click to launch the chamfer command.

2.Type of chamfer: Distance/distance chamfer, distance/Angle chamfer.

3.Options: Equal distance. Different chamfering values can be set when unchecked.

4.Parameters: Distance, Angle, etc., depending on the type of chamfer.

5.Chamfering element: Select the two sketch lines to be chamfered.

Distance-Distance Chamfer

Create a chamfer by defining the distance of the chamfer.

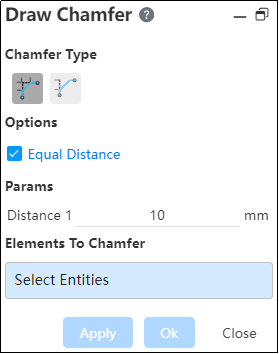

1.Select distance/distance chamfer.

2.Options: If Equal distance is checked, the distance is entered in the parameter. If not checked, then enter distance 1, distance 2 in the parameters.

3.Parameters: The default chamfer distance is 10. Distance ≤ the size of the line to be chamfered.

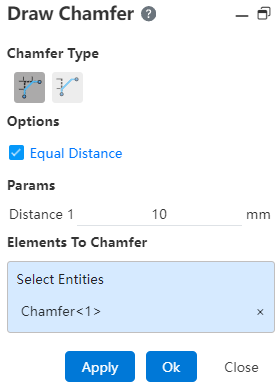

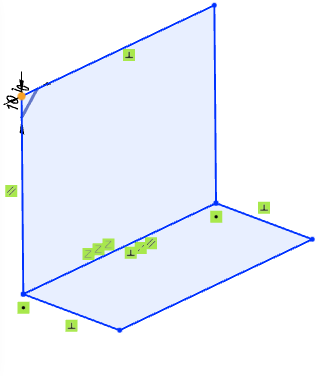

4.Preview effect: The line to be chamfered picked up in the viewport is highlighted to generate a preview line of chamfering, while the two sketch lines to be chamfered picked up are displayed in the list.

5.Special case: If the line to be chamfered is equal to the chamfering value, the chamfering effect is to create a reference line of the original chamfering line.

6.Click Create to generate the chamfer, and click Cancel to exit the chamfer.

Distance/Angle Chamfer

Create right angles between two unparallel lines by defining the distance and Angle.

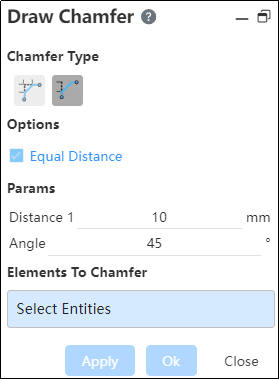

1.Select the distance/Angle chamfer.

2.Parameters: Distance, Angle. The default distance is 10 and the Angle is 45°.

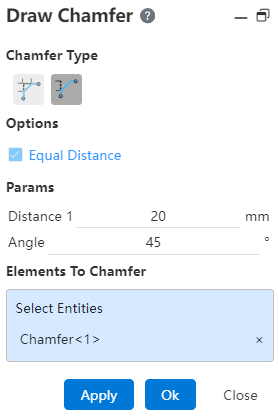

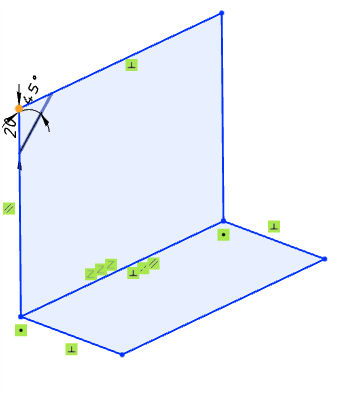

3.Preview effect: The line to be chamfered picked up in the viewport is highlighted to generate a preview line of chamfering, while the two sketch lines to be chamfered picked up are displayed in the list.

4.Special case: If the line to be chamfered is equal to the chamfering value, the chamfering effect is to create a reference line of the original chamfering line.

5.Click Create to generate the chamfer, and click Cancel to exit the chamfer.
