# Cylinder
Supports creating cylinders directly by setting parameters and positioning them.
Instructions for use:
Click

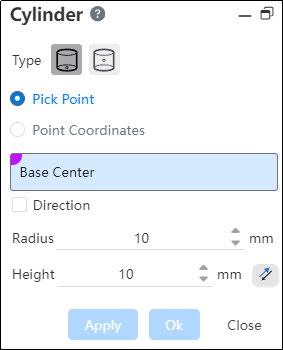

to enter the cylinder command, whose interface is shown below.
The meanings of each control are as follows:

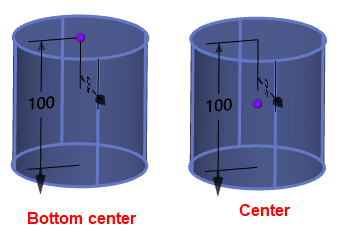

- Type: Select the cylinder anchor point, support the bottom center, center of two types of choice;
- Pick point/point coordinates: Select the way to specify the point position, which can be controlled by picking elements or entering point coordinates numerically.
- Pick point: Select a point to locate the cuboid, which can be a point on an element, a point created in a sketch, or a point on an entity.
- Point coordinates: Enter the coordinate value to control the location of the anchor point. Coordinate value The input variable records only the current variable value and does not maintain an association with the variable.
Direction: Choose a line or two points to define the cylinder direction.
Enter the radius and height values to complete the creation of the cylinder.
