Ellipsoid

---

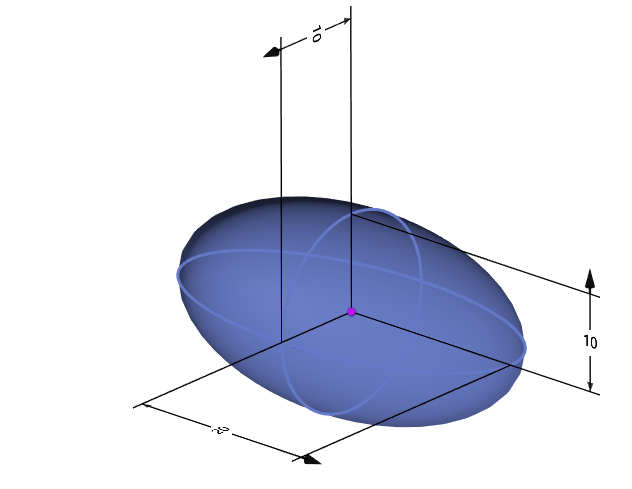

Using the [Ellipsoid] command, you can quickly create an ellipsoid-shaped entity.

1. How to use:

1） Click the Open Ellipsoid command.

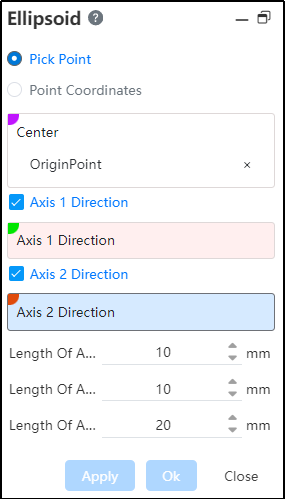

2） Pick up center point/Set center point coordinates.

3） Pick axis 1 direction/Axis 2 direction.

4） Set Axis 1 length/Axis 2 length/Axis 3 length.

5） Click Apply/OK to finish the creation.

2. Instructions:

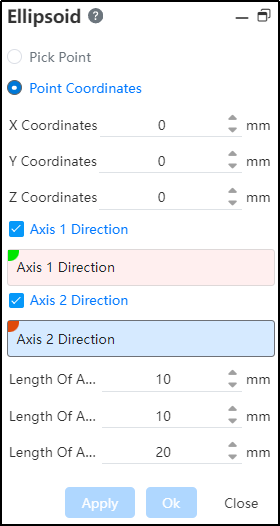

• The ellipsoid can be created normally by picking up the point/point coordinates either way.

• Axis 1 direction/Axis 2 direction is not required. When axis 1 direction is not picked up, the X direction is taken as the direction of axis 1 by default; When axis 2 direction is not picked up, the projection of the Y or Z direction on the vertical face of axis 1 direction is taken as the axis 2 direction by default.
