Sketch

Fit with Tolerance

The sketch dimension tolerance types now include: "Basic," "Fit," "Tolerance and Fit," and "Fit (Show Tolerance Only)," enhancing the annotation accuracy and completeness.

The usage is the same as in engineering drawing - dimensions.

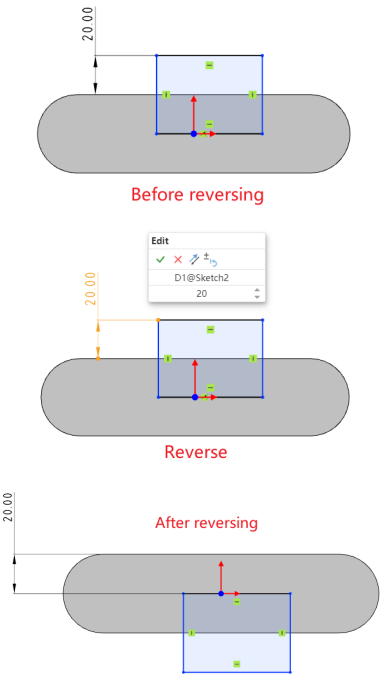

Dimension Reverse Direction

Dimension support for reverse direction, allowing the relative positions of the annotated elements to be swapped.

How to use：

1） Click the dimension you want to reverse.

2） Enter a negative value for the dimension, or click the "Reverse" button in the edit window.

3） Click the checkmark √ in the edit dialog box to swap the relative positions of the annotated elements.

How to use：Right-click the dimension and click the "Reverse" option.

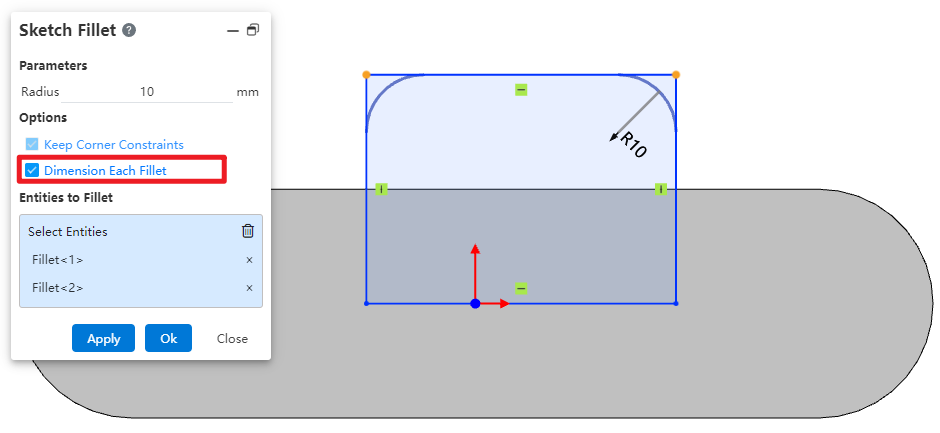

Fillet Optimization

Fillet Optimization: The "Dimension each fillet" option is now set to unchecked by default.

When generating multiple fillets with the same radius, only one fillet is annotated with a radius dimension, while the others are constrained using the "Equal Radius" rule, resulting in a cleaner annotation and more efficient subsequent modifications.

Fully Define Sketch

Support quick definition and constraint addition for unconstrained sketches.

How to use:

Click this icon, and in the pop-up dialog box, you can determine the elements to be defined, geometric constraint types, dimension constraint mode, dimension placement position, and datum as needed.

After making your selections, click "Calculate." The sketch will then automatically add constraints according to your requirements.
