Section Properties

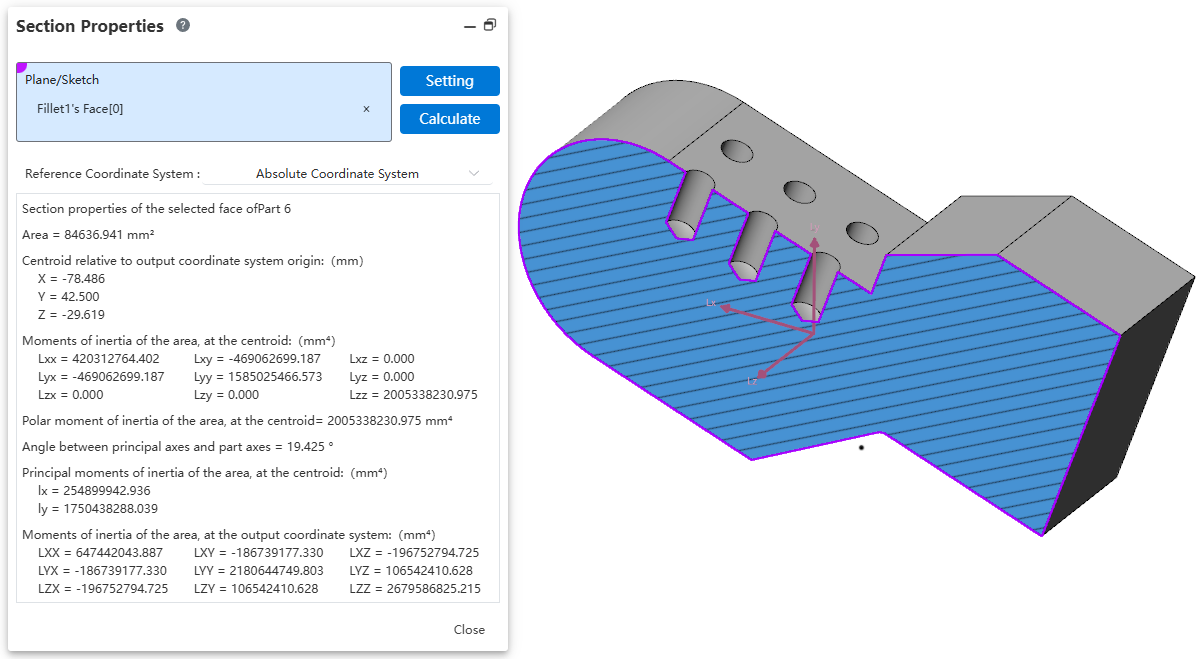

The Section Properties command has been added to measure relevant parameters of a section.

Usage:

1. Click the Section Properties command to open the dialog box.

2. Pick the face to measure. Supported selections include: "Closed Profile Sketch, Model Plane/Section, Multiple Parallel Faces".

3. Click Calculate, wait for the calculation to complete.

4. View the calculation results.

Note: Before measuring, you can use the Section View command to create a section.
