Arc Length Dimension

---

  Support for creating arc length annotations.

Creation steps：

1）Click the [Label Arc Length] command in the Smart Size drop-down menu.

2） Click the left button to select the arc edge line to display the arc size preview.

3） Click the left button again after moving the mouse to place the arc dimensions.

4） Continue to select other arcs that you want to label for continuous labeling.

5） Click the "Close" button to end the annotation.

Note：Only arc edges can be annotated.

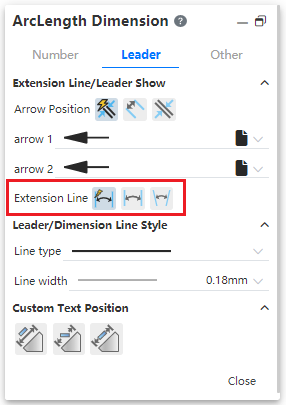

Label style：The size boundary style can be modified as shown in the following figure.

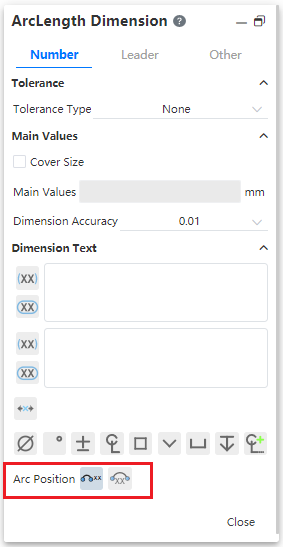

Arc symbol position：The arc position and dimension boundary line style can be modified in the position shown in the following figure.
