# Draw Bend Angle

Manually add a bend angle between adjacent path lines.

How to use：

  1. Draw two straight lines under the condition of path activation.

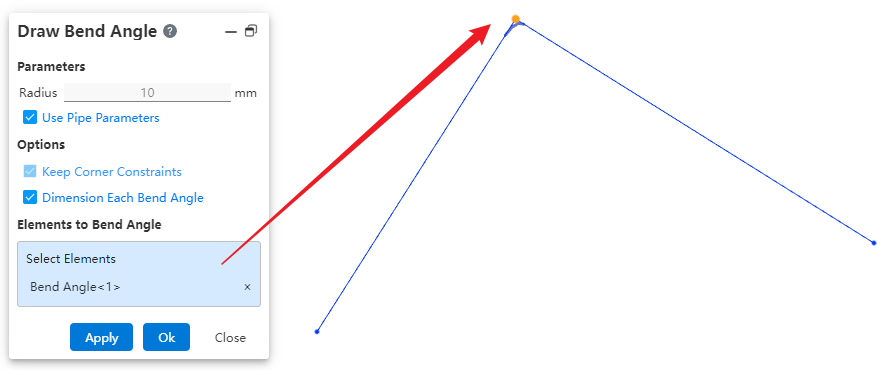

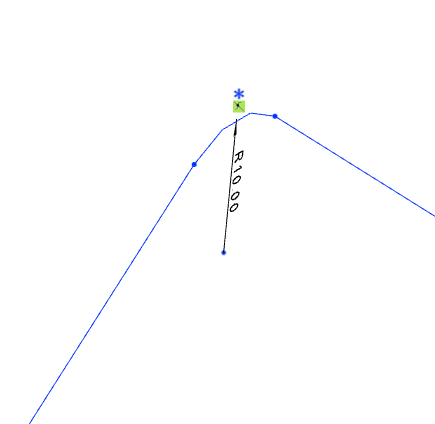

  2. Similar to the fillet command in the sketch, click on "Draw Bend Angle" to create a fillet between the two lines.

Dialog Box Control Instructions：

  • Use Pipe Parameters: When checked, the radius size cannot be modified. The default value is 10 mm. When unchecked, users can customize the bend angle size.

  • Maintain Corner Constraints: Maintains the tangent constraint between the bend angle and the two adjacent edges.

  • Dimension Each Bend Angle: When multiple bend locations are selected, checking this option ensures that each bend angle is dimensioned. If unchecked, only one bend angle will be dimensioned.

  • Elements for Bend Angle Creation: Select a vertex or a path line.
