# Polygon
Creates an equilateral polygon with a number of sides between 3-64.
# Drawing Steps
- Click The polygon to
turn on the polygon command.

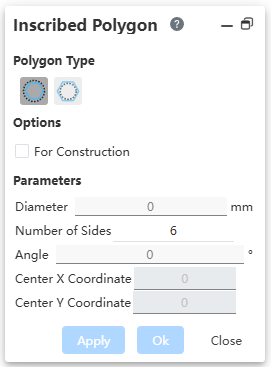

Polygon type：Inscribed Polygon, Circumscribed Polygon.
Parameters：Diameter, Number of Edges, Angle, Center Coordinates.

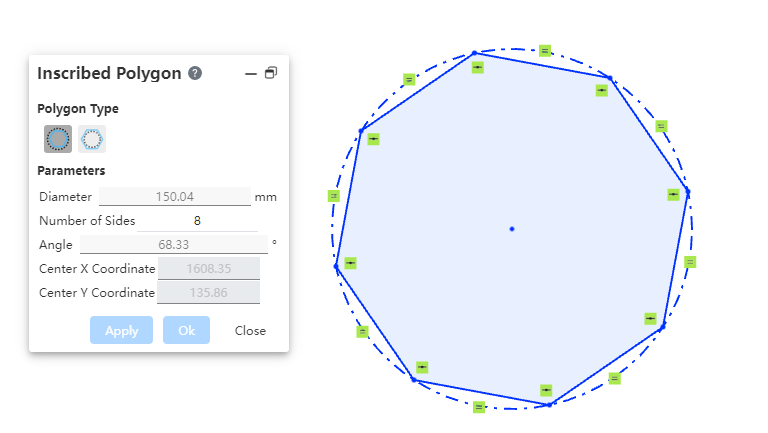

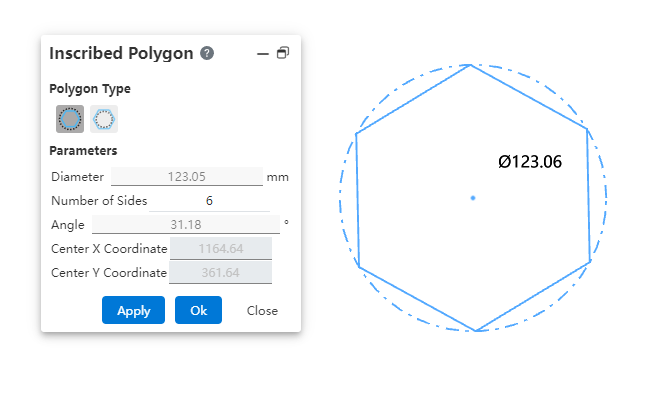

# Inscribed Polygon
Draws the inner polygon of the circle.
Select the inscribed polygon
.In the graphics area, click First to determine the center of the polygon.
Move the mouse cursor to determine the diameter of the polygon's outer circle.
- Enter the number of sides in the parameter and Enter to determine the number of sides.
Click in an empty space in the graphics area to create a polygon.
Change the diameter value of the circle in the parameter.
- End the command by the ESC key, or by right-clicking [Exit Inscribed Polygon] in the menu, or by "Close" in the command bar.

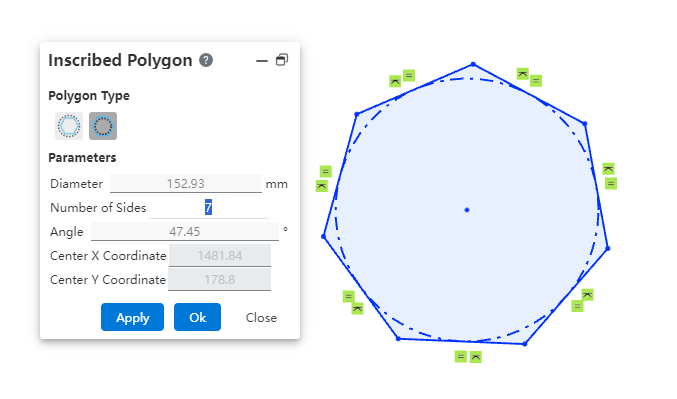

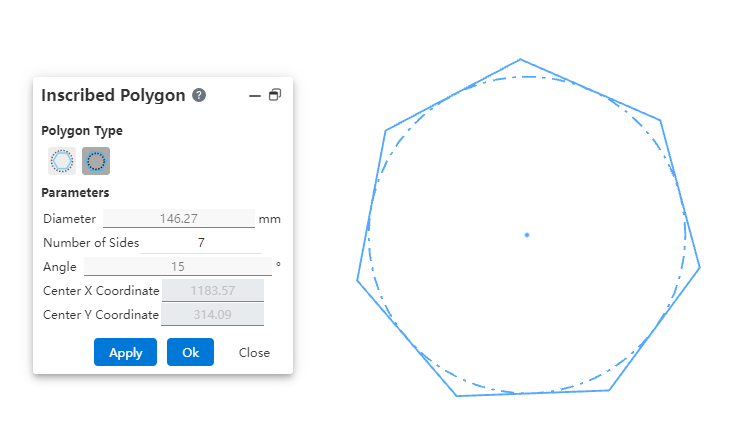

# Circumscribed Polygon
Draws the out-tangent polygon of the circle.
Select the circumscribed polygon
.In the graphics area, click First to determine the center of the polygon.
Move the mouse to determine the diameter of the polygon's inner circle.
- Enter the number of sides in the parameter and Enter to determine the number of sides.
Click in an empty space in the graphics area to create a polygon.
Change the diameter value of the circle in the parameter.
- End the command by the ESC key, or by right-clicking [Exit Circumscribed Polygon] in the menu, or by "Close" in the command bar.
# Attribute Box
Left-click a polygon's line in the viewport to display its properties, which are identical to a polyline or circle.
