Rotate Entities

---

Rotate the selected primitives.

Drawing steps:

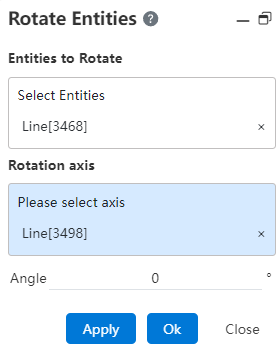

1.Click to start the Rotate metagraph command.

2.Elements to rotate: The viewport selects the elements to rotate (lines inside the sketch, draw points) and automatically fills them into the list.

3.Axis of rotation: Pick up the axis of rotation, and you can choose sketch lines, edges, etc., inside and outside the sketch;

4.Angle: Enter the value of rotation Angle;

5.Preview effect: the selected rotating element and the center of the rotation are highlighted:

6.End the command by pressing the ESC key, or "Cancel" in the command bar.
