Chamfer

---

The machining of one or more edges and faces of the model is cut into a certain bevel in different ways, and the chamfering method is divided into two types: angle/distance and distance/distance.

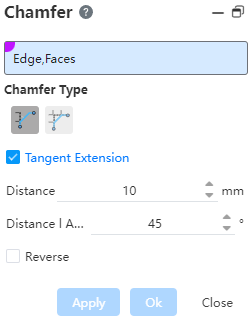

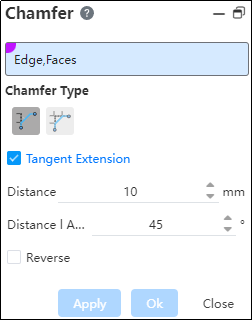

Click toolbar to open the Chamfer Command Dialog, whose command interface is shown in the following figure.

Corner command is divided into two command pages: Angle/Distance, Distance/Distance, corresponding to two different corner types.

Angle-Distance Chamfer

1. Edges, faces: Pick up the edges and faces that need to be chamfered, and you can select more than one.

Note：

You can only pick multiple edges or faces on a solid

2. Tangential extension: When the selected edge is an arc, select Tangential Extension to extend the chamfer along the arc in the tangential direction on either side of it.

3. Distance: The distance between the chamfer edge and the selected edge.

4. Angle: The angle between the chamfered edge and the plane and chamfer face of the selected edge.

Note：

The chamfer is the distance from one side of the selected edge, the angle on the other side, if necessary, check Reverse.

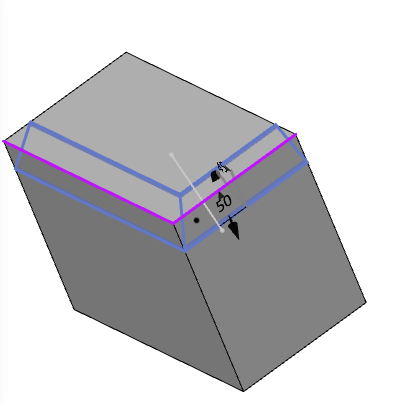

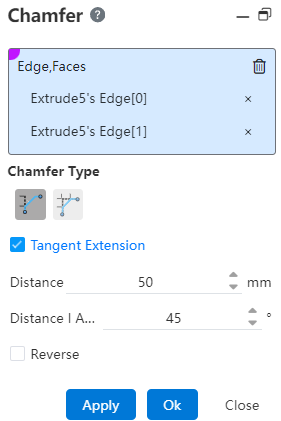

Example： After setting the relevant parameters, the chamfer preview effect is shown in the following figure.

Distance-Distance

1. Edges, faces: Pick up the edges and faces that need to be chamfered, and you can select more than one.

Note：

You can only pick multiple edges or faces on a solid

2. Tangential extension: When the selected edge is an arc, select Tangential Extension to extend the chamfer along the arc in the tangential direction on either side of it.

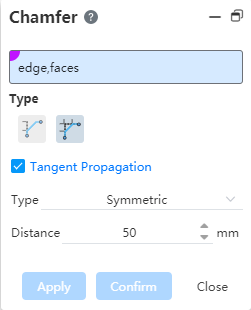

3. Method: There are two kinds, namely "symmetrical" and "asymmetrical", the following two methods are introduced:

Symmetry Distance

The distance between the sides of the chamfer edge and the selected edge.

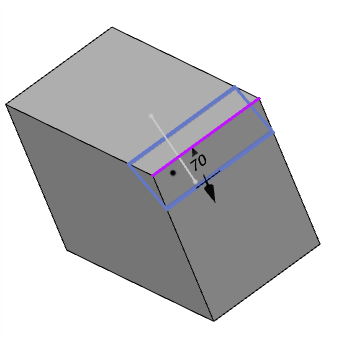

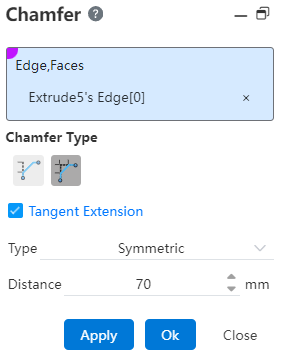

Example： After setting the relevant parameters, the symmetric preview effect is shown in the following figure.

Asymmetrical

• Distance 1: The distance of the chamfer edge from the side of the selected edge.

• Distance 2: The distance of the chamfered edge from the other side of the selected edge.

• Reverse: Do not check by default, switch the distance between the two sides after checking.

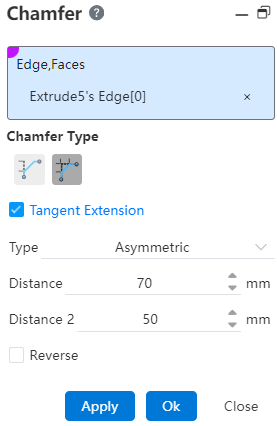

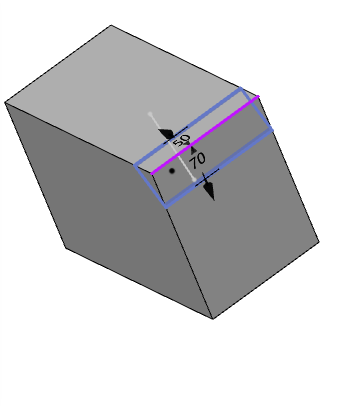

Example： After setting the relevant parameters, the asymmetric preview effect is shown in the following figure.
