Curvature

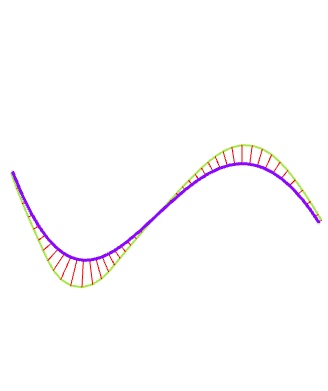

Curvature comb chart showing the selected surface/line.

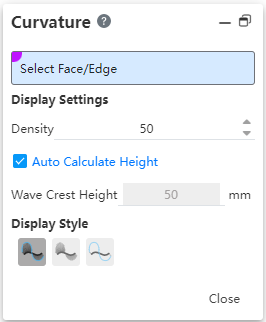

Click to open the Curvature dialog box.Select the line, surface, or entity to display the curvature comb, as shown in the image below.

Description of each control:

• Pick up box: can pick up line, surface, entity, can not be more than selected.

• Density: Control the density of the curvature comb, the larger the value, the more curvature comb displayed per unit length.

• Automatic height calculation: Checked by default, the system automatically adjusts the height of the curvature comb.

• Crest height: control the height of the curvature comb, uncheck the automatic calculation height can be manually modified.

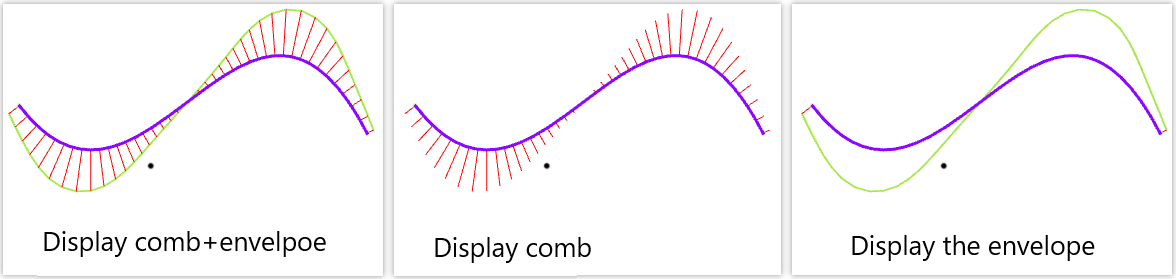

• Display style: Adjust curvature comb style, the effect is as follows.

Note：

1.When picking up a surface or entity, a curvature comb of its sides will be displayed.

2.Point the mouse to the curvature comb in the viewport to display the curvature value of the corresponding position.
