Quick Measurement

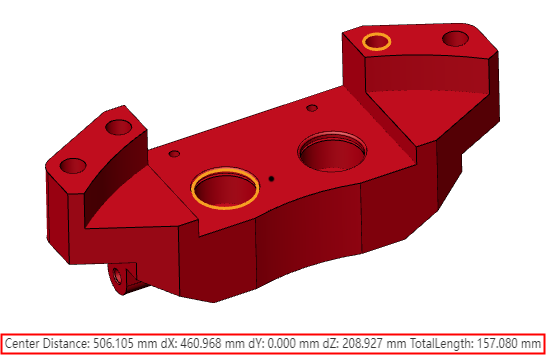

The measurement result of the selected element is displayed in the lower right corner of the viewport to facilitate real-time viewing of the basic information of the selected element.

• The measurement results displayed when picking up an element

The element that was picked	The measurements shown
Points (sketch points, solid points, origin points, reference points, center of mass)	Coordinate values
Straight lines (sketch lines, solid edges)	Length of line
Arc line	Radius, center coordinates
Round	Diameter, center coordinates
Curves	Arc length
Cylinder	Diameter
Arc face	Radius
Elements other than those mentioned above	No information is displayed

• Select the two elements by Ctrl to display the measurement results

Picked elements	The information displayed
Points - points, circles, arcs, curves, cylinders Straight line - cylinder, arc	Distance, dX, dY, dZ
Point - Line	Vertical distance
Two straight lines	Non-parallel: Angle Parallel: Vertical distance, total length
Straight lines - circles, arcs, curves Circle - circle, arc line, curve Arc - arc line, curve Curve-curve	Distance、dX、dY、dZ、Total length
Circle/arc/curve -- cylinder, arc	Distance、dX、dY、dZ
Arc face, cylinder	Distance、dX、dY、dZ、Total area
Two planes	Non-parallel: Angle Parallel: Vertical distance

• No information is displayed when picking up 3 or more elements
