Edit Electrical Wire

Using the 【Edit Electrical Wires】 function, you can edit, modify, and add wires.

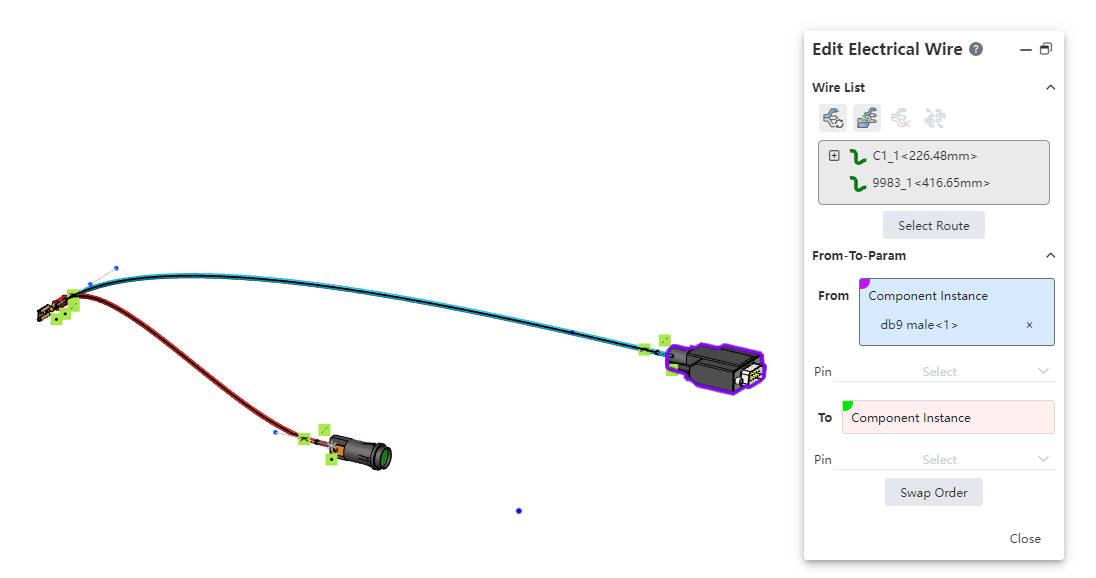

Dialog Box Description:

• Refresh Wires: Rebuilds all existing wires and cables in the entire route.

• Add Wire: Click to select a wire specification and add it to the current circuit.

• Delete Wire: Select a cable from the list, then click this option to remove the selected cable.

• Replace Wire: Select a cable from the list, then click this option to modify the cable's specifications.

• Wires List: Displays all wires and cables currently present in the circuit.

• Select Path: After selecting a cable, click to specify its routing path in the pop-up dialog box.

• From-To Parameters: Displays and sets the "From" and "To" component instances and pin numbers.

• Swap Order: Click to exchange the contents of "From" and "To."

• Properties: Shows predefined electrical properties of the wire.

• Custom Properties: Allows you to add additional properties as needed.

Wires List Line Status:

: Normal line with no issues.

: Path contains errors.

: Route path not specified.

Note: When specifying a route path, ensure it is continuous and connects from one component instance's connection point to another component instance's connection point.
