# Electrical Harness Library
Click the "Cable Library" command to open the "Cable Library" dialog, which is used for editing and managing cables.
The cable types supported include:
Wire: A single conductor wire.
Cable: A cable contains multiple cores (individual wires). All cores in a single cable share the same start and end components. Each core can be assigned to connect to specific pins of the component. Pin assignment is optional.
- Modifying cable information in the Cable Library does not affect already generated routes.
| Specification of Electrical Harness Library Controls | |
|---|---|
| Name | Rules |
| Electrical Harness Type | Optional: Wires, Cables (Default) |
| Search Electrical Harness | The input text searches for Electrical Harness containing text information. The search should include name, specifications, etc., covering all relevant details. |

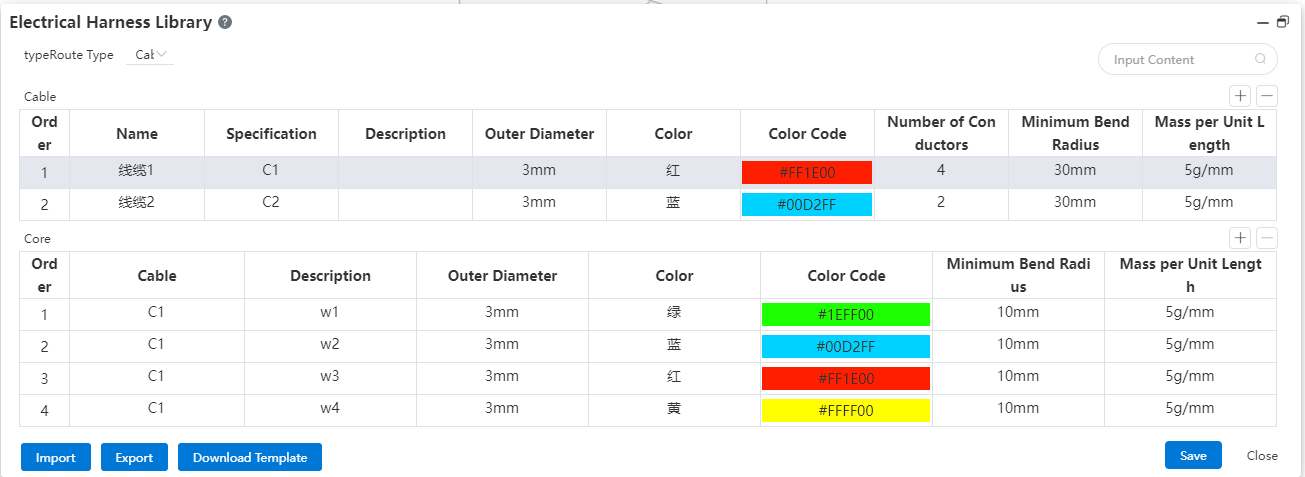

| Electrical Harness Information Table | This section is used to display and configure the specific Electrical Harness Library information of the current Electrical Harness Library.The last row's name remains in an editable state; typing automatically creates a new line. Parameters for the newly added line match those of the previous row.A right-click on any row allows deletion.Double-clicking a cell allows content modification.For cable types, selecting cables from the upper section displays the included conductors below. Rows can be added or removed using the lower conductor table.Specific modifiable details are documented in the Electrical Harness Property Information Table. |
| Add | Clicking adds a new row. By default, it mirrors the last line's information with an automatically appended suffix. The newly created row enters name-edit mode immediately. |
| Delete | The delete function becomes available when at least one row is selected. A confirmation prompt appears before deletion. |
| Import | Clicking invokes an "Import" dialog box to select and import a single Electrical Harness library table. |
| Export | Clicking invokes an "Export" dialog box to export the current Electrical Harness library table. |
| Electrical Harness Property Information Table | ||
|---|---|---|
| Property | Specification | Applicable Electrical Harness |
| Name | Electrical Harness Name, Must Be Unique | Wire,Electrical Harness |
| Conductor Number | Used to distinguish wire cores in the boundary table, must be unique. | Conductor |
| Specification | Electrical Harness Specification (Part Number), Must Be Unique. Used to control which Electrical Harness specification is called up in the wire harness chart. | Wire,Electrical Harness |
| Description | Optional, used to add descriptive information for the Electrical Harness. | Wire,Electrical Harness |
| Outer Diameter | Electrical Harness Diameter, representing the diameter of the generated route entity.After entering a value, display a unit dropdown. After selecting a unit, convert the input parameter to mm units for storage. | Wire,Electrical Harness, Conductor |
| Color | Electrical Harness Color Name, arbitrary text can be entered. | Wire,Electrical Harness, Conductor |
| Color Code | Electrical Harness Color Code, click to select the desired color via a color picker. This color affects the entity's appearance in the model.The background color of this cell will be displayed as the selected color code . | Wire,Electrical Harness, Conductor |
| Number Of Conductors | Number of cable conductors, cannot be manually entered; synchronized with the addition/deletion of wire cores. | Electrical Harness |
| Minimum Bend Radius | Minimum Bend Radius for the route entity.After entering a value, display a unit dropdown. After selecting a unit, convert the input parameter to mm units for storage. | Wire,Electrical Harness, Conductor |
| Unit Length Mass | Line Unit Length Mass, used to calculate the total weight of the cable.After entering a value, display a unit dropdown. After selecting a unit, convert the input parameter to g/mm units for storage." | Wire,Electrical Harness, Conductor |
