Area profile line/Fill

---

Use Area Profile/Fill to customize the fill model plane area.

How to add：

1） Click the [Area Profile/Fill] command.

2） Select the model surface you want to fill in the viewport.

3） Select the pattern to fill in the dialog box.

4） Click OK to finish filling.

How to modify：

1） Select the pattern you want to modify in the viewport.

2） Modify the parameters in the dialog box that pops up.

3） Click OK to finish modifying.

How to delete：

1） Select the pattern you want to delete in the viewport.

2） Press Delete to finish deleting.

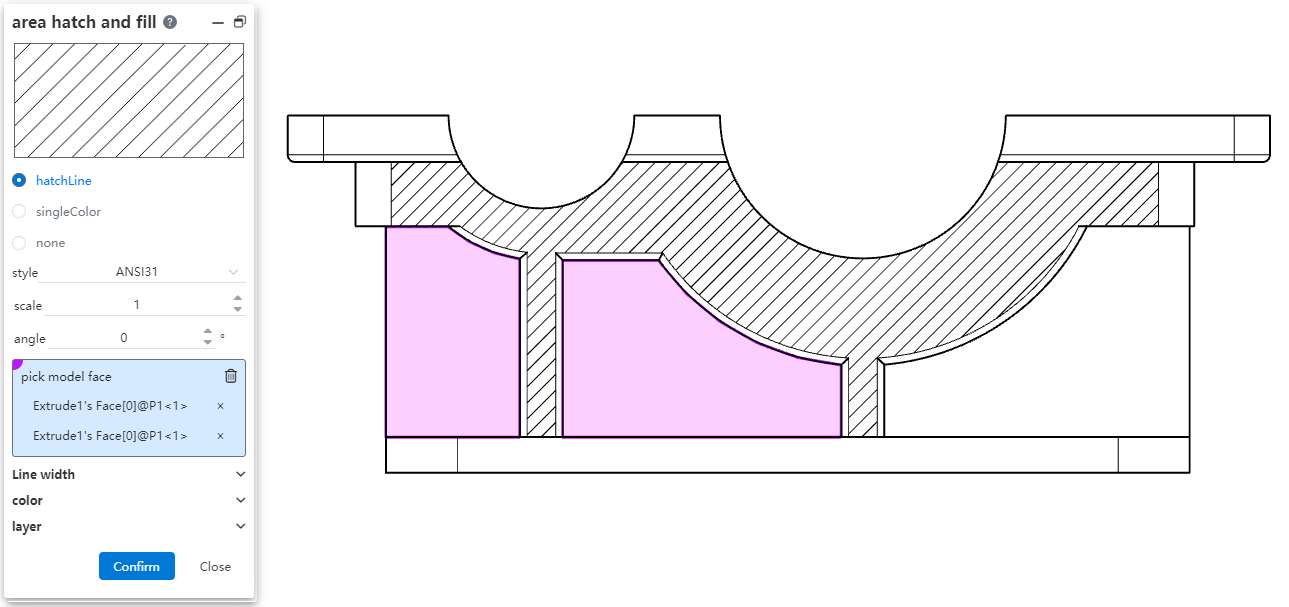

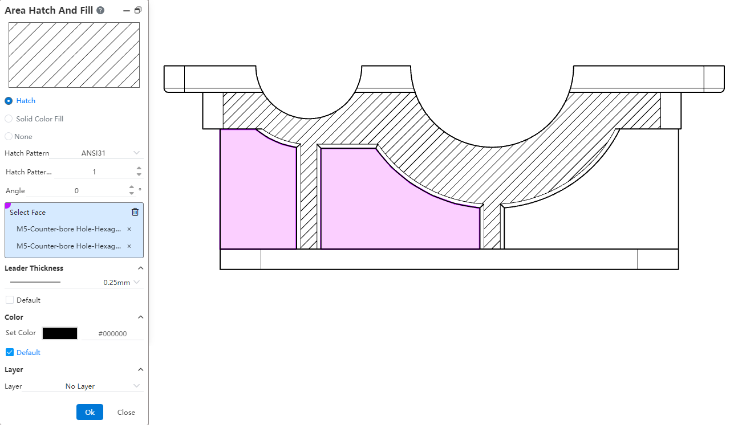

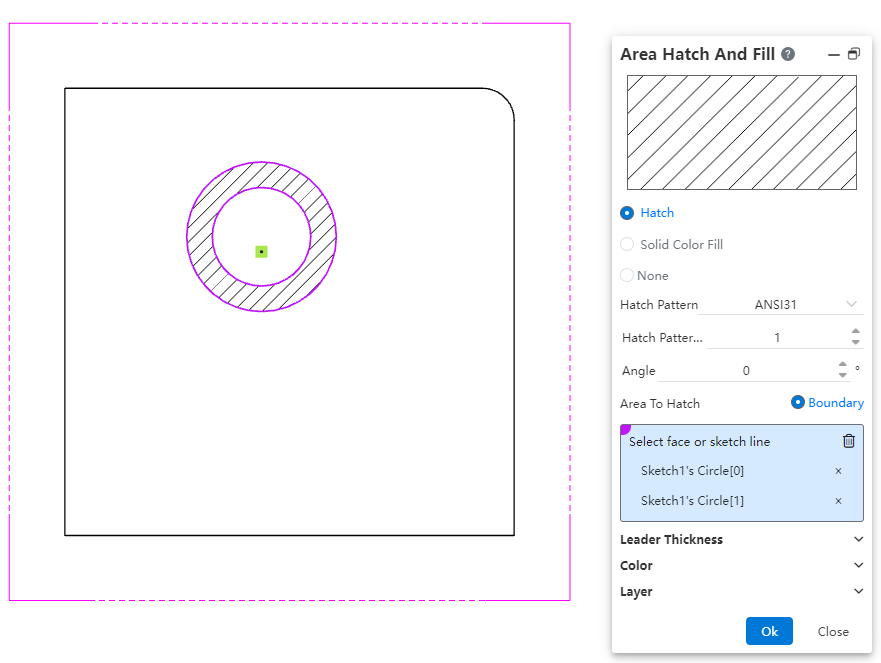

Dialog box control description：

• Section Line, monochrome, None: Select the type of fill pattern.

• Style, Scale, Angle: When selecting the section line type, set the section line specific pattern.

• Select model face: Select the face you want to fill.

• Line width： Set the pattern line width, check default to use the default line width.

• Color： Set the pattern color, check default to use the default color.

• Layer： Set the layer to which the profile line belongs.

Note： Only surfaces that are flat in 3D can be filled.
