Remove Section

---

When you need to represent small sections of a larger model or similar areas, moving out the sections is simpler and more intuitive than a full section view.

How to use：

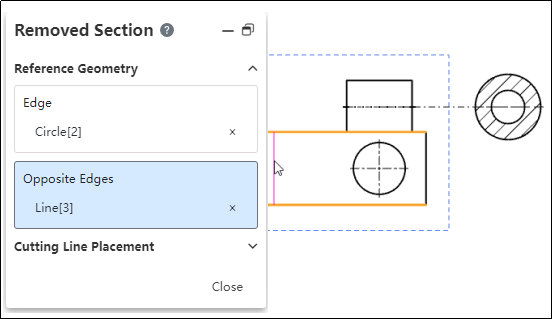

1） Click the Move Out Profile command.

2） Pick up the edges on either side of the section you want to generate in the viewport.

3） Move your mouse between the two edges to see a preview of the cut lines.

4） If the profile preview is as expected, left click to generate the profile preview; If the cut line preview does not meet expectations, expand the cut line placement option, switch to "Manual", manually specify the cut line endpoint on each of the two sides to generate the profile preview.

5） Move the section preview to the desired position and click the left mouse button to complete the placement.

Associated view：

• Supports the generation of profiles out of this type of view： Model view, projection view, section view, auxiliary view, disconnected section view.

• Supports the generation of this type of view from the moved out view： Local view, cropped view.

Note： The view direction of the removed view is related to the order of selecting edges. After generating, you can select the view and click "Reverse direction" in the dialog box to change the view Angle.
